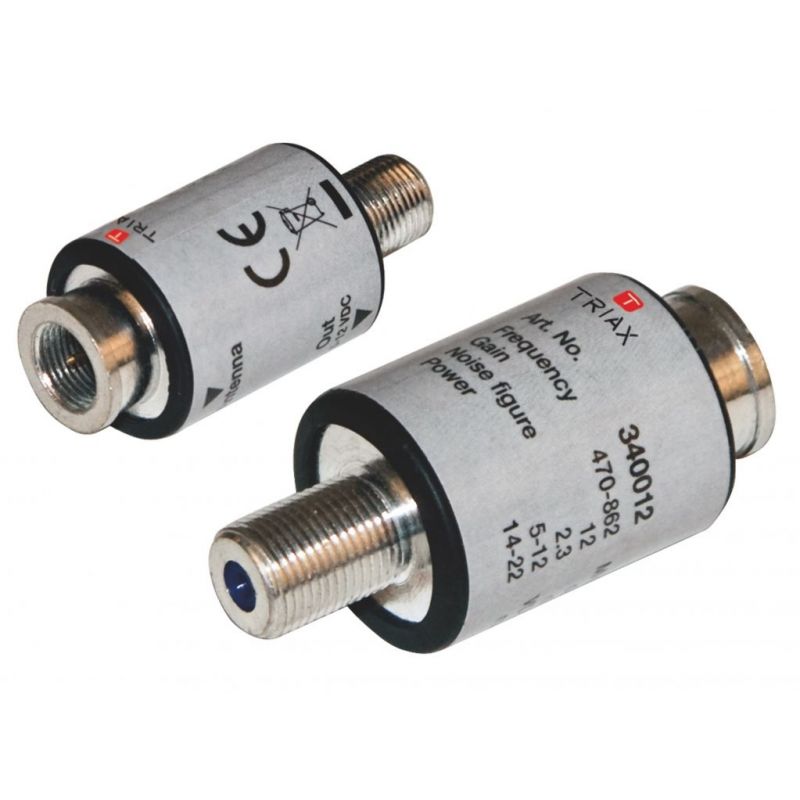

Line Amplifier AFA Micro Amp TDT UHF 12 dB 5-12VDC Triax
Change your UHF antenna with F connector to an active antenna, just add this great little amplifier.
It works with 5 VDC of the digital receiver, or with 12.5 VDC of any external power supply. Reduce the current in standby mode: there is no consumption when the digital receiver is off.
€11.19
Tax included
Reference
triax-340012
Brand
Triax
Line Amplifier AFA Micro Amp TDT UHF 12 dB 5-12VDC Triax
€11.19
Change your UHF antenna with F connector to an active antenna, just add this great little amplifier.
It works with 5 VDC of the digital receiver, or with 12.5 VDC of any external power supply. Reduce the current in standby mode: there is no consumption when the digital receiver is off.
The Micro amplifier of the UHF band can convert your UHF antenna into an active antenna, simply by adding this small amplifier.
Features
- Ideal for DVB-T signals.
- Gain: 12 dB.
- Output level: 95 dBμV (IMA -60 dB).
- Power: 5 - 12 VDC.
- Consumption: 22 mA max.
- F female connectors.
- Dimensions L x Ø: 47 x 20.5 mm.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663400122 |
| CHARACTERISTICS | |
| Type. | Wideband mast amplifier |
| Max. Output level @ -60 dB IMD | 95 dBµV |
| FREQUENCY | |
| Input 1 - frequency | 470...862 MHz |
| Input 1 - band | UHF |
| Input 1 - channels | 21...69 |
| GAIN | |
| Input 1 - gain | 12 dB |
| Input 1 - noise figure | 2.3 dB |
| RETURN LOSS | |
| Return Loss | >10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 5...12 VDC |
| DC Current consumption | 10...22 mA |
| CONNECTORS | |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Connector Type | F-male / F-female |
| MECHANICAL | |
| Product Height | 45 mm |
| Product Width | 23 mm |
| Packaging Height | 0.020 m |
| Packaging Width | 0.080 m |
| Packaging Depth | 0.100 m |
| Net Weight | 0.042 kg |
| Tara Weight | 0.007 kg |
| Total Weight | 0.049 kg |
| Remarks | Mounting on dipol |
