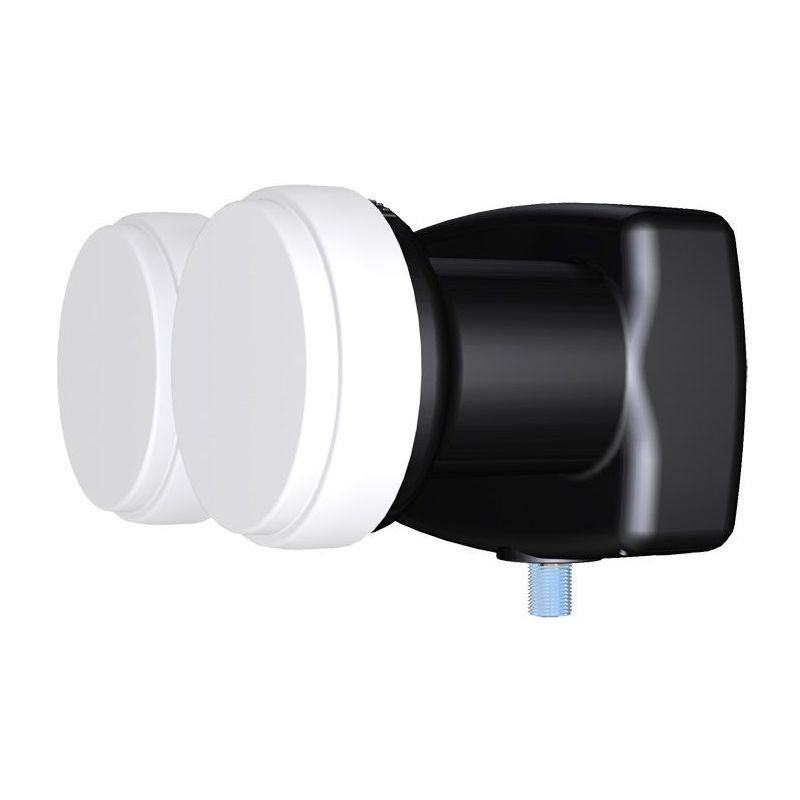

LNB Inverto Single Monoblock 40mm, 6° for 80cm dish
Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for the broadcast reception (on an 80 cm dish antenna) of any two satellites spaced with 6°. It enables the signal distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance.
€17.99
Tax included
Reference
inverto-3501
Brand
Inverto

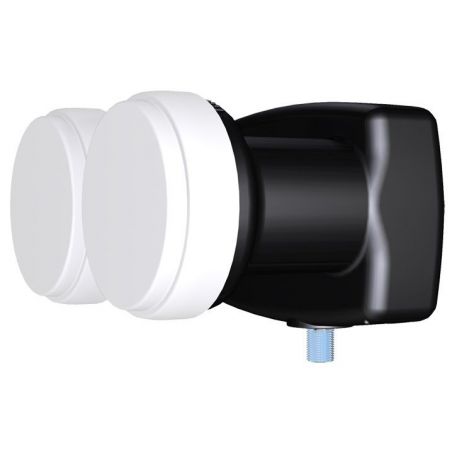

LNB Inverto Single Monoblock 40mm, 6° for 80cm dish
€17.99
Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for the broadcast reception (on an 80 cm dish antenna) of any two satellites spaced with 6°. It enables the signal distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.
Main Features
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Noise Figure (0.2 dB)
- Low Power Consumption
- Very high Cross Polarization Isolation
- Very high Frequency Stability
Specifications
| Inverto | IDLB-SINM40-MNOO6-8PP |
|---|---|
| Low Band Input Frequency Range | 10.7 ~ 11.7 GHz |
| Low Band Output Frequency Range | 950 ~ 1950 MHz |
| Low Band LO Frequency | 9.75 GHz |
| High Band Input Frequency Range | 11.7 ~ 12.75 GHz |
| High Band Output Frequency Range | 1100 ~ 2150 MHz |
| High Band LO Frequency | 10.6 GHz |
| Noise Figure | 0.2 dB Typ. (0.7 dB Max.) |
| LO Initial Accuracy | +/- 1.0 MHz Max. |
| LO Temperature Drift | +/- 3.0 MHz Max. |
| Phase Noise (@ 10 kHz) | - 90 dBc / Hz Max. |
| Conversion Gain | 50 ~ 62 dB. |
| Gain Ripple (Over 26 MHz Bandwidth) | +/- 0.75 dB |
| Gain Variation (Over Full Band) | +/- 4 dB Max. |
| Image Rejection | 40 dB Min. |
| 1 dB Compression Point (@ Output) | 0.0 dBm Min. |
| Control, Satellite A/B Selection | DiSEqC 1.0 (Sat A = Hotbird 13° East, Sat B = ASTRA 19.2° East) |
| Cross Polarization Isolation | 22 dB Min. |
| Output VSWR | 2.5 : 1 |
| In-Band Spurious | - 60 dBm Max. |
| Current Consumption | 150 mA Max. @ 11 ~ 20 V |
| Operating Temperature | - 30 °C ~ + 60 °C |
| Output Impedance | 75 Ω |
| Output Connector | F-Type (Female) |
| Weight | 270 g |
| Recommended Dish Size | 75 ~ 85 cm (F/D = 0.6) |
| Monoblock Mounting Bracket | 40 mm |
