  • X-Security XS-SW0809-96-HIPOE - X-Security PoE Switch, 8 PoE ports + 1 Uplink port,…

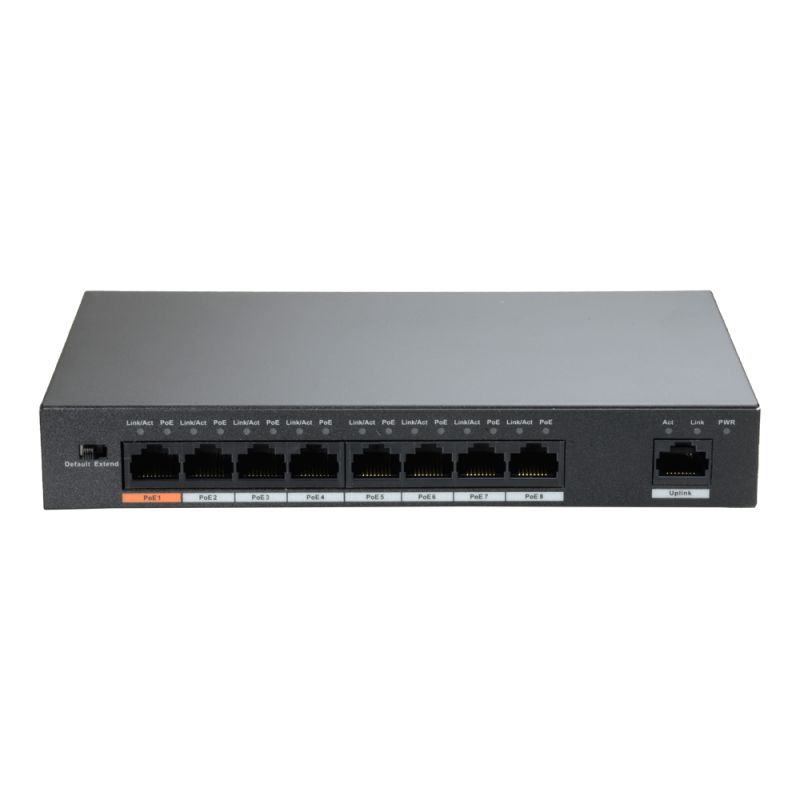

X-Security XS-SW0809-96-HIPOE - X-Security PoE Switch, 8 PoE ports + 1 Uplink port,…

X-Security PoE Switch - 8 PoE ports + 1 Uplink port - Speed 10/100Mbps - Port 60W 1 / ports 30W 2-8 / maximum 96W - CCTV mode up to 250m at 10Mbps - Hi-PoE / IEEE802.3at (PoE+) / af (PoE+)
€53.30 €82.00 Save 35%
Tax included
Reference XS-SW0809-96-HIPOE
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-SW0809-96-HIPOE - X-Security PoE Switch, 8 PoE ports + 1 Uplink port,…

X-Security XS-SW0809-96-HIPOE - X-Security PoE Switch, 8 PoE ports + 1 Uplink port,…

€53.30 €82.00 Save 35%
  • X-Security
  • Desktop Switch
  • 8 RJ45 10/100 Mbps Hi-PoE ports + 1 Uplink 10/100 Mbps port
  • Supports PoE power supply up up 96W in total for all ports
  • Up to 60W in channel 1 and up to 30W between channels 2 and 8
  • Compatible with PoE IEEE802.3af/at and Hi-PoE
  • CCTV Mode which increases the distance to 250m @ 10Mbps

Features

  • X-Security PoE Switch
  • 8 PoE ports + 1 Uplink port
  • Speed 10/100Mbps
  • Port 60W 1 / ports 30W 2-8 / maximum 96W
  • CCTV mode up to 250m at 10Mbps
  • Hi-PoE / IEEE802.3at (PoE+) / af (PoE+)

Specs

Interface8 PoE RJ45 ports + 1 Uplink port
Port speed9x 10/100 Mbps
Power supplyUp to 60W (Hi-POE) in port 1 and up to 30W in ports 2 to 8 (96 W in total for the switch)
PoE featuresHi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Transmission distanceCCTV mode up to 250m at 10Mbps
PowerDC 48 V - 57 V
Operating temperature-10º C ~ 55º C
Dimensions100 (D) x 30 (H) x 190 (W) mm

Package content

  • X-Security PoE Switch
  • AC/DC Power adaptor
  • User instructions

Data sheet

Power
DC 48 V - 57 V
Transmission distance
CCTV mode up to 250m at 10Mbps
Dimensions
100 (D) x 30 (H) x 190 (W) mm
Operating temperature
-10º C ~ 55º C
Power supply
DC 48 V - 57 V
Up to 60W (Hi-POE) in port 1 and up to 30W in ports 2 to 8 (96 W in total for the switch)
PoE features
Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Interface
8 PoE RJ45 ports + 1 Uplink port
Port speed
9x 10/100 Mbps
