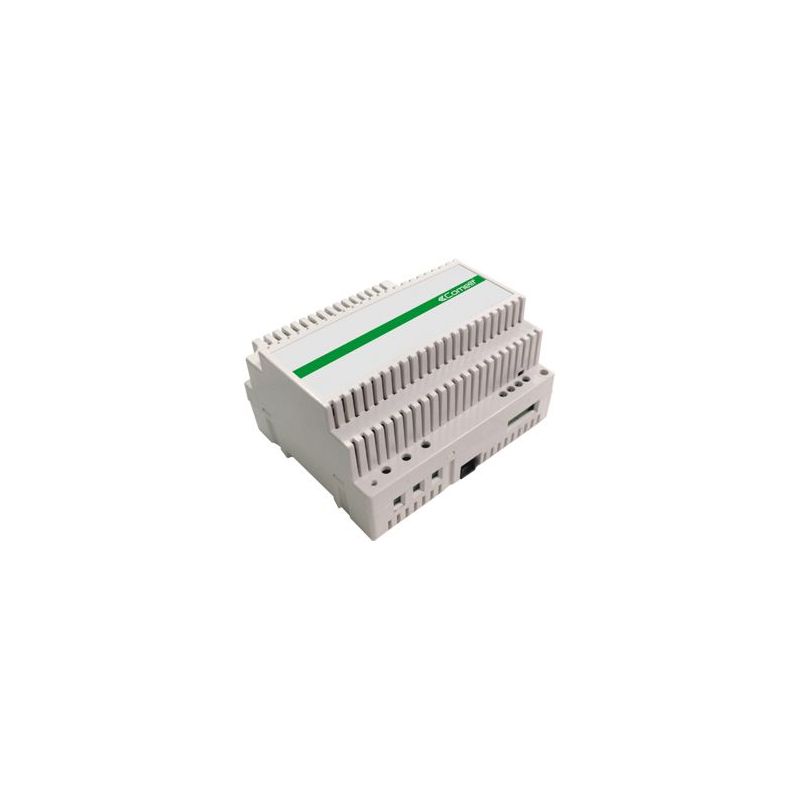

Comelit 1210 - 2 wire feeder
Feeder for 2-wire system, necessary to feed the external board (terminals L1 - L1) and the column riser (terminals L2 - L2). Supplied with a terminal for line termination art. 1216. Input voltage 110-240 Vac. Compatible with audio / video art unit. 4681 and 1621VC and the audio unit art. 1621. (6 DIN modules).
€75.03
€136.42
Save 45%
Tax included
Reference
comelit-1210
Brand
Comelit
Feeder for 2-wire system, necessary to feed the external board (terminals L1 - L1) and the column riser (terminals L2 - L2).
Features
- Supplied with a terminal for line termination art. 1216
- Compatible with audio / video art unit. 4681 and 1621VC and the audio unit art. 1621
- Dimensions: 106x89x62 mm (6 DIN modules).
Specifications
| MAIN FEATURES | |
| Alternating input voltage (VAC) | 110÷240 |
| Output voltage (VDC) | 34 |
| Feeder with plug | No |
| Applicable with DIN rail | S |
| Number of DIN modules | 6 |
| Max current supplied (A) | 1.20 |
| GENERAL DATA | |
| Product height (mm) | 108 |
| Product width (mm) | 90 |
| Depth (mm) | 62 |
| Operating temperature (° C) | 40 ÷ |
| COMPATIBILITY | |
| Audio / Video System Building Kit | S |
| Simplebus 2 audio system | S |
| ASSEMBLY / INSTALLATION | |
| Surface mounting | No |
| AUDIO / VIDEO FEATURES | |
| Audio system | No |
| Audio / video system | S |
| CONNECTIVITY | |
| Stabilized output | No |
| Power outputs that can be used in parallel | No |
| ELECTRICAL CHARACTERISTICS | |
| Switched mode power | No |
| Maximum current consumption (mA) | 800.00 |
| Maximum power supplied (W) | 40 |
