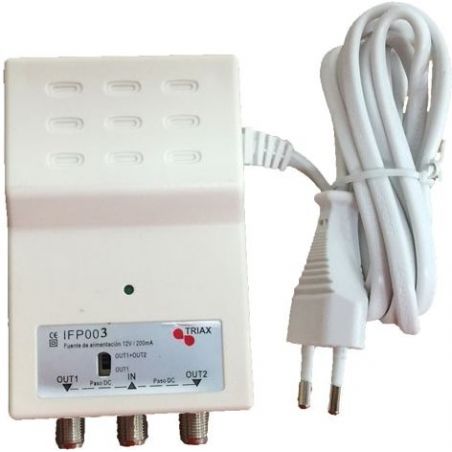

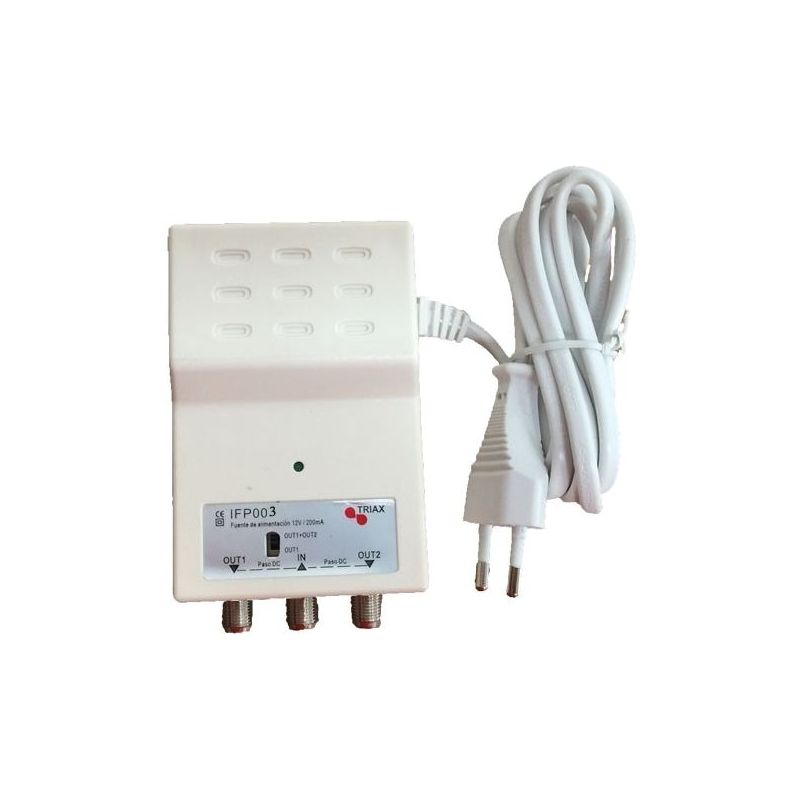

Triax IFP 003 12Vdc / 200 mA power supply
The IFP 003 power supply has been specially designed to power the MFC 108 LTE mast amplifier. It has 1 or 2 switchable outputs of low losses and great isolation. Its circuit has been designed to allow the passage of current through each of the outputs.
€26.44
Tax included
Reference
triax-339001
Brand
Triax
Triax IFP 003 12Vdc / 200 mA power supply
€26.44
The IFP 003 power supply has been specially designed to power the MFC 108 LTE mast amplifier.
It has 1 or 2 switchable outputs of low losses and great isolation.
Its circuit has been designed to allow the passage of current through one of the outputs.
Characteristics
- Plastic box for interior assembly.
- Elegant design
- 12Vdc / 200mA voltage
- Low losses
- High decoupling between input and outputs
- Low losses
- Current passage in both outputs
| R. Frequencies | MHz | 47 – 2400 | |
| Departures | Out1 | Out1+2 | |
| Losses | dB | ||
| 47 – 862 MHz | < 1 | 4 ± 1 | |
| 950 – 2400 MHz | < 3 | 6 ± 2 | |
| Decoupling between departures | dB | ||
| Land | --- | <15 | |
| Satelite | --- | <12 | |
| Voltage | VDC | 12 | |
| Max. power | mA | 200 | |
| Current passage | SI | ||
| Supply voltage | VAC | 230 ± 10% | |
| Temperature range | ºC | -20 …+60 | |
| RF connectors | F Hembra | ||
