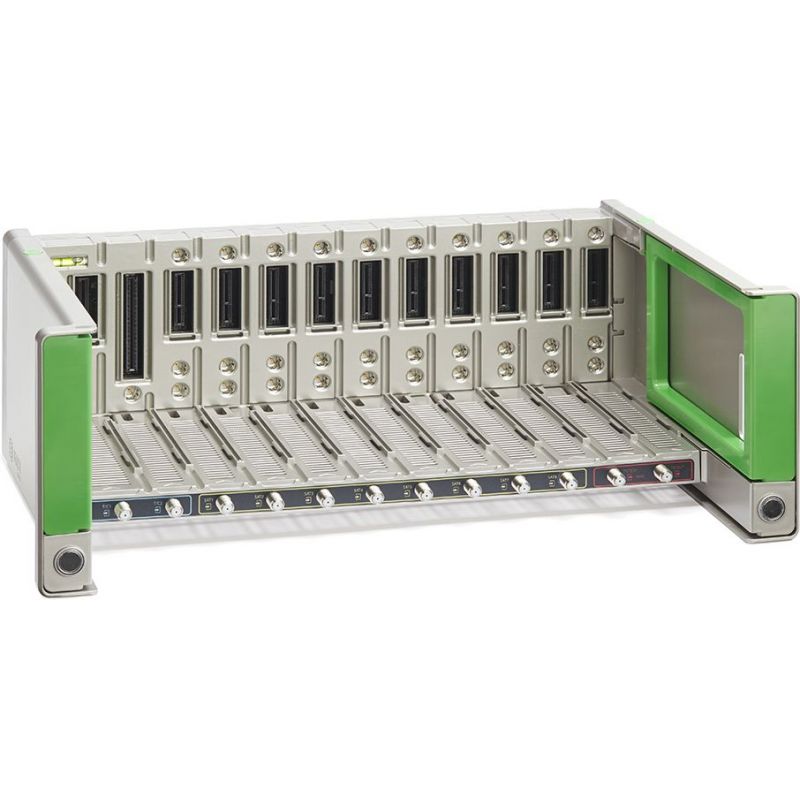

Ikusi FLOW BAS 2.0 Platform frame

Self-assembled chassis. Valid for both 19" rack or wall mount. Tool-free and accessory-free assembly.Multiswitch incorporated.

€2,178.00
Tax included
Reference ikusi-4312
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi FLOW BAS 2.0 Platform frame

Ikusi FLOW BAS 2.0 Platform frame

€2,178.00

The FLOW BASE incorporates a hybrid ethernet/RF backpanel unique to Ikusi FLOW, and manages the RF connectivity and energy use of all elements in the headend. The intelligent chassis controls all RF signals, power supply, and module hot-swap functions.

  • An integrated multiswitch automatically routes satellite signals
  • to the modules that require them.
  • Universal F type connectors allow easy attachment to premises cabling.
  • 19 "rack mount or wall mounted with the same base.
  • Assembly without tools or accessories.
  • Actual height of 4RU (includes cable glands).

A lightweight and robust design offers easy installation in a rack environment without the use of tools, and is also suitable for wall mount installations. Its modular structure allows it to be configured to meet almost any customer requirement

Specifications

Terrestrial / Cable
Number of inputs 2
Frequency range MHz 47 - 862
Input level dBμV 40 - 90
Impedance Ω 75
Satellite mode
Number of inputs 8
Frequency range MHz 950 - 2150
Input level dBμV 40 - 98
Impedance Ω 75
Output
Number of outputs 1
Output frequency range MHz 47-862
Output level adjustment dBμV 78 - 108
Output level stability dB ±1
Spurious signal in band dBc < -60
Broadband noise (∆5 MHz) dBc < -65
Impedance Ω 75
Output test dB -30
General
Power supply voltage VDC 24
Power consumption W 10
Preamplifier powering
Inputs TV1 y TV2
Adjustable voltage VDC 12/24
Max consumption per input mA 100
Alimentación de LNBs Universal / Quattro
Inputs SAT1 and SAT2
Voltage VDC 13V - 18V (selectable)
Tones insertion kHz 0 - 22 (selectable)
Max consumption per input mA 300
Quattro LNB powering
Inputs  Inputs SAT3 to SAT8
Voltage VDC 12
Total max consumption mA 600
Operating temperature ºC 0 ... +45
Mounting type Wall-fixing / 19” Rack
Input/Output RF connectors F (12)
Weight kg 3,800

Dimensions (Height x Width x Depth)

 mm 175 x 487 x 319
