SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5285 AND id_lang = 1 Triax KOKA 110 Coaxial cable + PVC 100m white
search
  • Triax KOKA 110 Coaxial cable coil + PVC 100m white

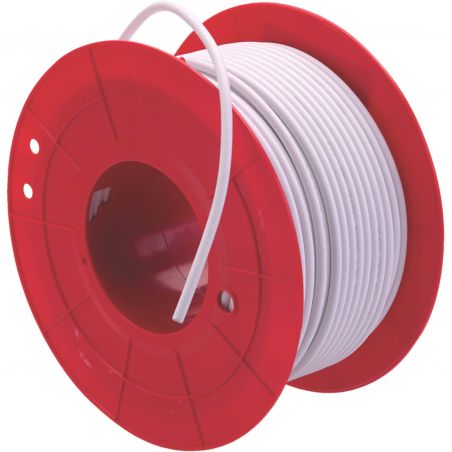

Triax KOKA 110 Coaxial cable + PVC 100m white

Is a triple shielded class A+ coaxial cable, which delivers high quality transportation of TV/Video signal with low LTE interference. This cable is the right choice if you require a clear TV-picture without pixilation. High performance even over long distances,

€133.10
Tax included
Reference triax-151610
Brand Triax
Quantity
Available Now

Free shipping

Triax KOKA 110 Coaxial cable + PVC 100m white

€133.10

Is a triple shielded class A+ coaxial cable, which delivers high quality transportation of TV/Video signal with low LTE interference. This cable is the right choice if you require a clear TV-picture without pixilation. High performance even over long distances.

  • Class A+ (EN 50117-2-4) & PE cable (EN 50117-2-5)
  • High quality materials means long durability
  • High performance even over long distances
  • LTE protected – tinned copper braid & two layers foils protect signals

 Specifications

INFORMATION
EAN Number 5702661516108
CONSTRUCTION
Dielectric - dimension 4.6(+0.2-0.3) mm
Dielectric - material PE gas injected
Jacket – dimension 6.8 ± 0.1 mm
Jacket - material PVC
Shield (First) foil 1 – material Al/Pet/Copolymer bonded
Shield (First) foil 1 – overlap 20 %
Shield (Second) – braid coverage 60 %
Shield (Second) – braid material CuSn
Third shield – foil 2 – material AL/Pet bonded
Inner conductor - material Cu
Inner conductor - dimension 1.02 ± 0.01 mm
SHIELDING
Screening attenuation @ 1000-2000 MHz ≥ 120 dB
Screening attenuation @ 2000-3000 MHz ≥ 120 dB
Screening attenuation @ 30-1000 MHz ≥ 120 dB
TRANSFER IMPEDANCE
Transfer Impedance @ 5-30 MHz < 2.5 mΩ/m
CHARACTERISTICS
Type COAX 7mm
LOSS
Attenuation (at 20°C) @ 1000 MHz 20.3 dB
Attenuation (at 20°C) @ 200 MHz 9.0 dB
Attenuation (at 20°C) @ 2400 MHz 32.5 dB
Attenuation (at 20°C) @ 470 MHz 13.5 dB
Attenuation (at 20°C) @ 5 MHz 1.5 dB
Attenuation (at 20°C) @ 862 MHz 18.8 dB
RETURN LOSS
Structural return loss @ 1000-2400 MHz ≥ 20 dB
Structural return loss @ 470-1000 MHz ≥ 23 dB
Structural return loss @ 5-470 MHz ≥ 25 dB
ELECTRICAL
Capacity 53 ± 2 pF/m
Outer DC resistance < 12.0 Ω/km
Velocity ratio 83 ± 1 %
Impedance 75 ± 3 Ω
Inner DC resistance < 21.5 Ω/km
OPERATIONAL
Screening Efficiency EN50117 (Class A+)
Application Indoor
Fire Class Eca
DoP number TR0010
Notified Body 2479
MECHANICAL
Total Weight 0,048 kg
Length (m) 100 m
Net Weight 0,048 kg
Packaging Volume 0,001 m3
Colour White
