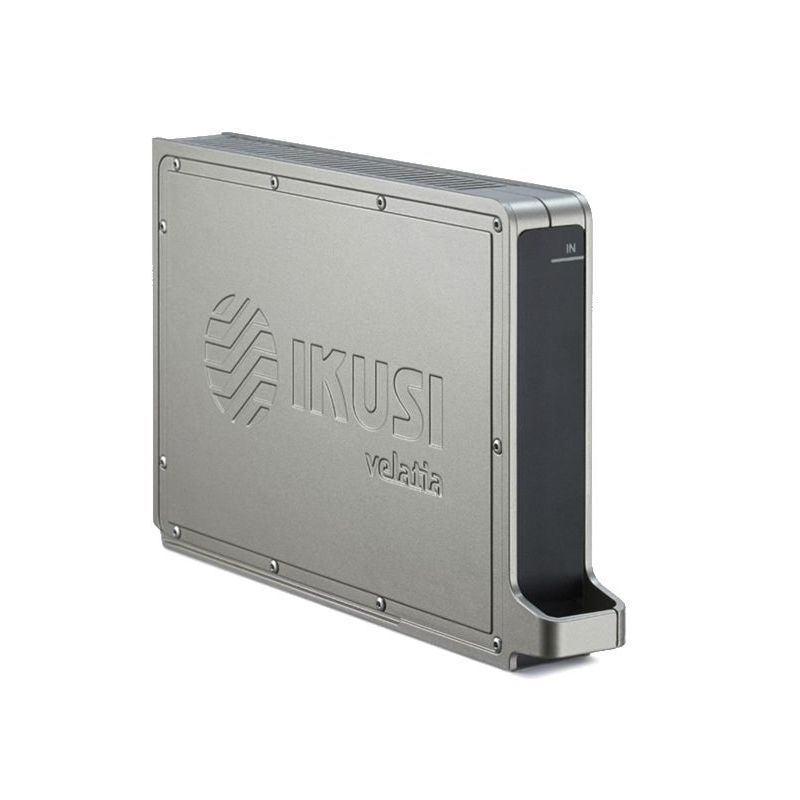

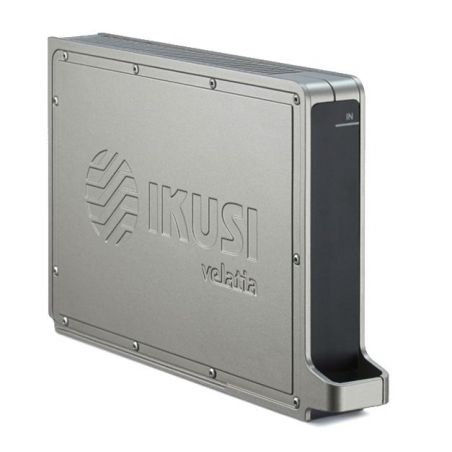

Ikusi FLOW IN Digital module 2 universal inputs
The FLOW IN module has the function of tuning two different multiplexes of any of the DVB-T / T2 / S / S2 / C standards. These signals are processed to send the services in the form of SPTS (Single Program Transport Stream) to an external network or to other modules of the Ikusi FLOW header within the same chassis.
€1,936.00
Tax included
Reference
ikusi-4306
Brand
Ikusi
Ikusi FLOW IN Digital module 2 universal inputs
€1,936.00
The FLOW IN module has the function of tuning two different multiplexes of any of the DVB-T / T2 / S / S2 / C standards.
These signals are processed to send the services in the form of SPTS (Single Program Transport Stream) to an external network or to other modules of the Ikusi FLOW header within the same chassis.
Specifications
| Inputs | ||
| Number of inputs connectors | 2 | |
| Terrestrial - Frequency band | MHz | 47 - 862 |
| Terrestrial - Supported standards | DVB-T/T2 | |
| Cable - Frequency band | MHz | 47 - 862 |
| Cable - Supported standards | DVB-C | |
| Satellite - Frequency band | MHz | 950 - 2150 |
| Satellite - Supported standards | DVB-S/S2 | |
| IPTV output | ||
| SPTS (Single Program Transport Stream) per input | 32 | |
| Total SPTS | 64 | |
| Transmission protocols | UDP/RTP | |
| Number of TS packets per IP | 1 - 7 | |
| SAP protocol | Sí | |
| Interface type | Gigabit Ethernet | |
| Standard | 1000Base-T | |
| VLAN support | Yes | |
| General | ||
| Power supply voltage | VDC | 24 |
| Power consumption | W | 6,5 |
| Operating temperature | ºC | 0 ... +45 |
| Weight | g | 328 |
| Dimensions (height x width x depth) | mm | 175 x 487,5 x 319 |
