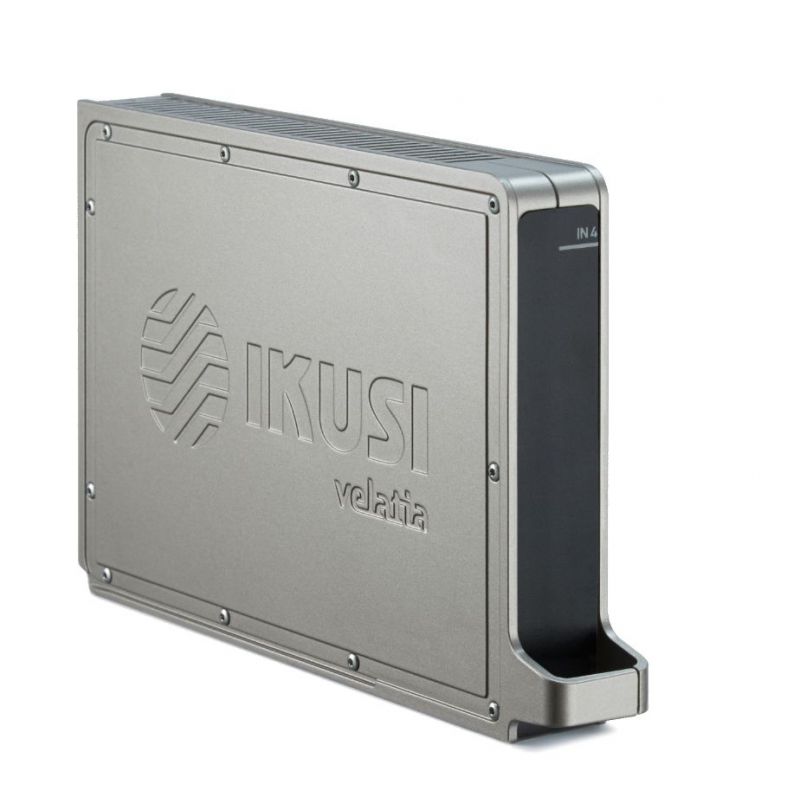

Ikusi FLOW IN x 4 Digital module 4 universal inputs
The FLOW IN4 module’s function is to tune four independent signals, each of which can be in DVB-T/T2 terrestrial, DVB-C cable, or DVB-S/S2 satellite format. These signals are then processed and sent in SPTS (Single Program Transport Stream) form to an external network or other modules in the same headend via the backpanel of the Ikusi FLOW chassis.
€2,843.50
Tax included
Reference
ikusi-4319
Brand
Ikusi
Ikusi FLOW IN x 4 Digital module 4 universal inputs
€2,843.50
The FLOW IN4 module’s function is to tune four independent signals, each of which can be in DVB-T/T2 terrestrial, DVB-C cable, or DVB-S/S2 satellite format.
These signals are then processed and sent in SPTS (Single Program Transport Stream) form to an external network or other modules in the same headend via the backpanel of the Ikusi FLOW chassis.
Specifications
| Inputs | ||
| Number of inputs connectors | 2 | |
| Number of tuners | 4 | |
| Terrestrial - Frequency band | MHz | 47 - 862 |
| Terrestrial - Supported standards | DVB-T/T2 | |
| Cable - Frequency band | MHz | 47 - 862 |
| Cable - Supported standards | DVB-C | |
| Satellite - Frequency band | MHz | 950 - 2150 |
| Satellite - Supported standards | DVB-S/S2 | |
| IPTV output | ||
| Total SPTS | 60 | |
| Transmission protocols | UDP | |
| SAP protocol | Yes | |
| Interface type | Gigabit Ethernet | |
| Standard | 1000Base-T | |
| General | ||
| Power supply voltage | VDC | 24 |
| Power consumption | W | 8 |
| Operating temperature | ºC | 0 ... +45 |
| Weight | g | 460 |
| Dimensions (Height x Width x Depth) |
mm | 125 x 27 x 210 |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
The FLOW IN4 module’s function is to tune four independent signals, each of which can be in DVB-T/T2 terrestrial, DVB-C cable, or DVB-S/S2 satellite format. These signals are then processed and sent in SPTS (Single Program Transport Stream) form to an external network or other modules in the same headend via the backpanel of the Ikusi FLOW chassis.
