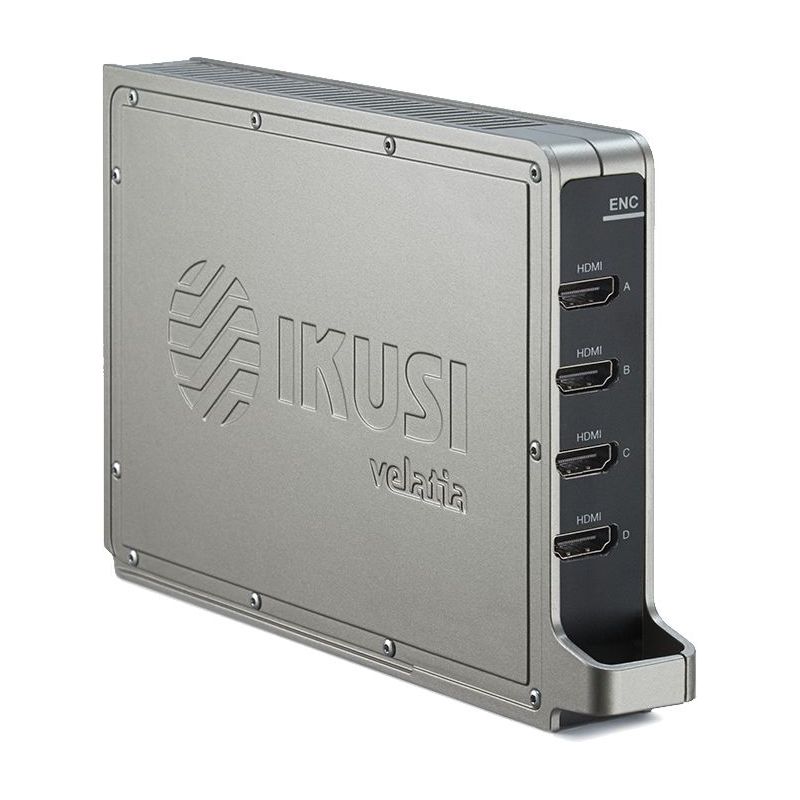

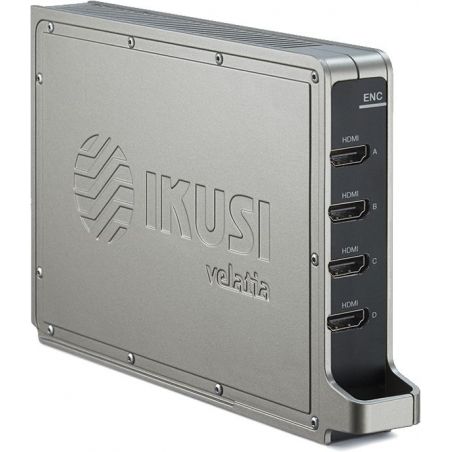

Ikusi FLOW ENC HDMI 4 inputs encoder module
The FLOW ENC can be configured to encode video content in a variety of resolutions and formats through the easy-to use Ikusi FLOW web interface. The encoded streams are then sent by ethernet over the Ikusi FLOW backpanel to external IPTV networks, or to other modules for further processing and inclusion in RF output multiplexes.
€4,416.50
Tax included
Reference
ikusi-4315
Brand
Ikusi
Ikusi FLOW ENC HDMI 4 inputs encoder module
€4,416.50
The FLOW ENC can be configured to encode video content in a variety of resolutions and formats through the easy-to use Ikusi FLOW web interface. The encoded streams are then sent by ethernet over the Ikusi FLOW backpanel to external IPTV networks, or to other modules for further processing and inclusion in RF output multiplexes.
Features
- 4 HDMI inputs
- Video compression MPEG4 H.264 or MPEG2
- FULL HD quality
Specifications
| Input | |||||
| Number of video-audio digital inputs | 4 | ||||
| Input video format | HDMI | ||||
| Video standard | V1.4 | ||||
| Digital audio | Yes (HDMI) | ||||
| Compression | |||||
| Vídeo compression | MPEG2 MP@ML, H.264/MPEG4 AVC MP L4.1 |
||||
| Audio compression | MPEG1 layer II, MPEG2_LE_ACC, MPEG4_HE_AAC |
||||
| Video quality | SD and HD (480i, 576i, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p25, 1080p30) |
||||
| Image format | 4:3 / 16:9 | ||||
| Video codec | MPEG2, H.264 | ||||
| H.264 Profile | MPEG4 AVC MP, HP | ||||
| H.264 Level | 3.0, 3.1, 3.2, 4.0, 4.1, 4.2 | ||||
| Video Bitrate | MPEG2 H.264 |
kbps | 2000-15000 2000-19000 |
||
| Audio codec | MPEG1 Layer II MPEG2 AAC LE MPEG2 AAC HE MPEG4 AAC LE MPEG4 AAC HE |
||||
| Audio Bitrate | kbps | 96, 128, 160, 192, 224, 256, 320, 384 |
|||
| Coding format | CBR in MPEG2 VBR in H.264 |
||||
| IPTV output | |||||
| SPTS (Single ProgramTransport Stream) | 4 | ||||
| Transmission protocols | UDP | ||||
| SAP protocol | Yes | ||||
| Interface | Gigabit Ethernet | ||||
| Standard | 1000Base-T | ||||
| General | |||||
| Power supply voltage | VDC | 24 | |||
| Consumption | W | 12 with four 1080i60 inputs in H.264 |
|||
| Operating temperature | ºC | 0 ... +45 | |||
| Weight | g | 525 | |||
|
Dimensions |
mm | 125 x 27 x 210 | |||
