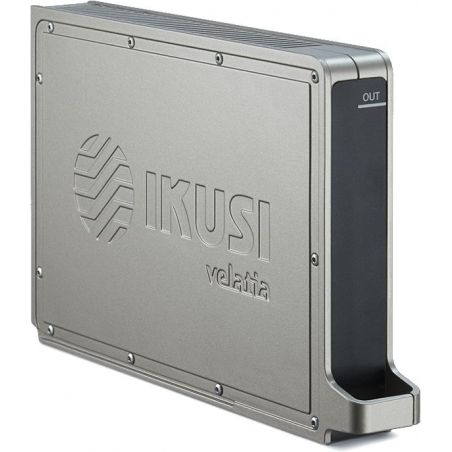

Ikusi FLOW OUT Digital module 4 output channels COFDM or QAM
The FLOW OUT module generates 4 or 6 RF carriers (depending on the selected mode) in DVB-T, DVB-C or J.83 Annex B format. Each Ikusi Flow headend may have several OUT modules, whose RF carriers are all combined and amplified by the FLOW BAS
€2,843.50
Tax included
Reference
ikusi-4313
Brand
Ikusi
Ikusi FLOW OUT Digital module 4 output channels COFDM or QAM
€2,843.50
The FLOW OUT module generates 4 or 6 RF carriers (depending on the selected mode) in DVB-T, DVB-C or J.83 Annex B format. When OUT4 mode is selected, 4 RF carriers wil be generated. Each carrier can convey up to 8 television or radio services (SPTS). When OUT 6 mode is selected, 6 RF carriers will be generated, each one with 6 television or radio services (SPTS) as maximun. Each Ikusi Flow headend may have several OUT modules, whose RF carriers are all combined and amplified by the FLOW BASE.
Features
- Four COFDM or QAM output
- Up to 8 SPTS per carrier
- Independent carriers on the spectrum
- Output level of 78 to 108dbµV
Specifications
| Input IPTV | ||
| Interface type | Gigabit Ethernet | |
| Standard | 1000Base-T | |
| VLAN support | Yes | |
| RF output | ||
| Number of outputs RF carriers | 4 in OUT4 mode 6 in OUT6 mode |
|
| Number of SPTS per RF carriers | 8 in OUT4 mode 6 in OUT6 mode |
|
| Total SPTS | 32 in OUT4 mode 36 in OUT6 mode |
|
| Standards supported | DVB-T EN 300 744 DVB-C EN 300 429 J.83 Annex B |
|
| MER | dB | > 42 |
| General | ||
| Power supply voltage | VDC | 24 |
| Power consumption | W | 21,5 |
| Operating temperatur | ºC | 0 ... +45 |
| Weight | g | 400 |
| Dimensions (Height x Width x Depth) |
mm | 125 x 27 x 210 |
