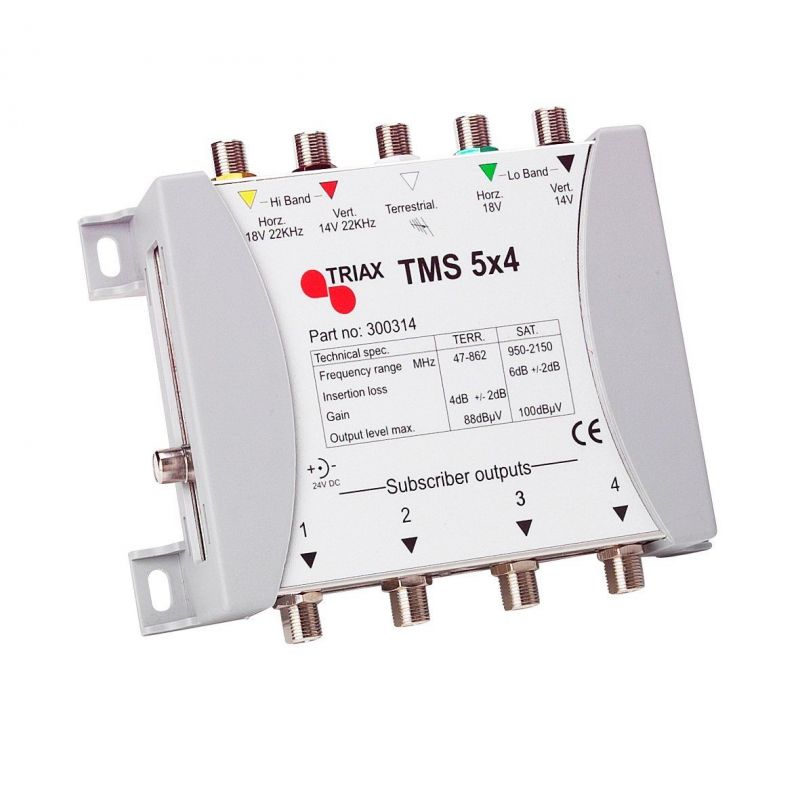

Triax TMS 5X4 Multiple switch (5 inputs: 4 satellite and 1 terrestrial, 4 outputs)
TMS 5X4. Multiswitch 4 SAT + Terrestrial polarities for 4 users. The Triax TMS 5X series is the optimal choice for a satellite position in small networks. All multiswitches have integrated a VHF / UHF circuit, whether the signals come directly from antennas or from an existing system.
€111.93
Tax included
Reference
triax-300314
Brand
Triax
TMS 5X4. Multiswitch 4 SAT + Terrestrial polarities for 4 users. The Triax TMS 5X series is the optimal choice for a satellite position in small networks. All multiswitches have integrated a VHF / UHF circuit, whether the signals come directly from antennas or from an existing system.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Code | 5702663003149 |
| CHARACTERISTICS | |
| Output level max. SAT at -35 dB IMD3 | 100 dBµV |
| Output level max. TER to -60dB IMD3 | 88 dBµV |
| FREQUENCY BAND | |
| SAT bandwidth | 950-2150 MHz |
| TER bandwidth | 47-862 MHz |
| GAIN | |
| Gain - TER [47-862 MHz] | 4.0 dB |
| ISOLATION | |
| SAT output-output isolation | 30 dB |
| TER exit-exit isolation | 30 dB |
| SAT isolation to TER | 22 dB |
| TER isolation to SAT | 22 dB |
| ADAPTATION | |
| Loss of return SAT entries | 12 dB |
| Loss of return SAT outputs | 7 dB |
| Loss of return TER entries | 11 dB |
| Loss of return TER outputs | 7 dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Supply voltage | 15.0 ± 0.5 VDC |
| Current max. F connector | 600 mA |
| Temperature range | 0...+55 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Number of transport line inputs | 4 SAT, 1 TER |
| User outings | 4 |
| MECHANICAL | |
| Depth | 103 mm |
| Gross depth | 0,210 m |
| Gross height | 0,080 m |
| Gross weight | 0,530 Kg |
| Gross width | 0,140 m |
| Net weight | 0,280 kg |
| Quantity per package | 1 |
| Weight of the packaging | 0,250 Kg |
| Volume | 0,002 m3 |
| Width | 145 mm |
| Height | 51 mm |
