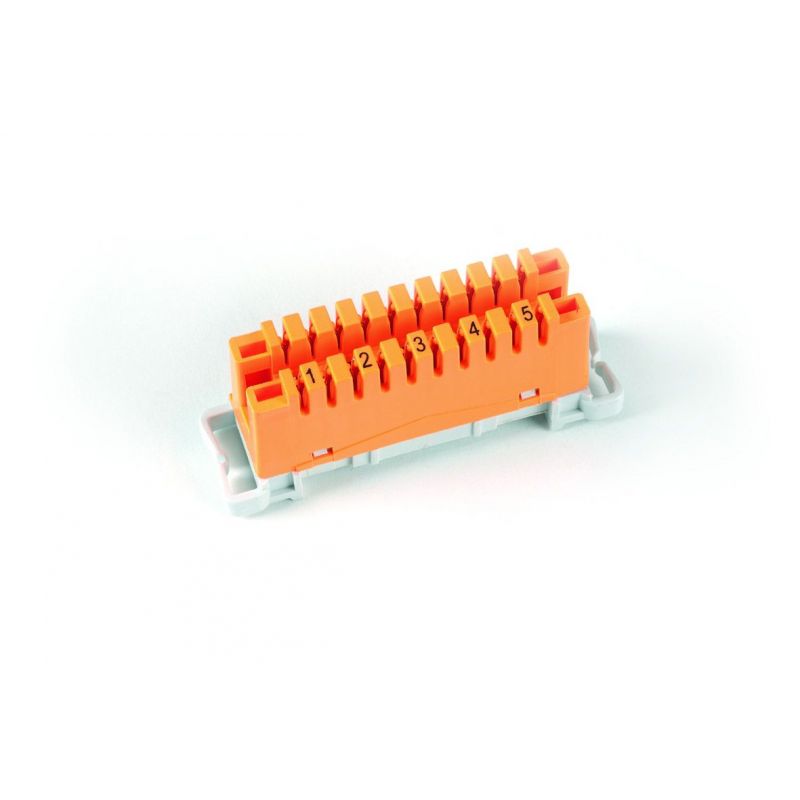

BT Terminal Board 5 Pairs (Box 5 units) Televes
The 5-pair terminal blocks are designed to accommodate and connect up to 5 pairs of telephone cable (2x5 contacts) by displacing their insulation. Supplied in boxes of 5 units.
€4.11
Tax included
Reference
televes-2173
Brand
Televes
BT Terminal Board 5 Pairs (Box 5 units) Televes
€4.11
Telephone strip
5 Pairs
The 5-pair terminal blocks are designed to accommodate and connect up to 5 pairs of telephone cable (2x5 contacts) by displacing their insulation.
Supplied in boxes of 5 units.
Stands out for
- Insulating material block
- Insulator displacement connection system
- Corrosion resistance according to UNE 2050-2-II (CEI 68-2-II)
- Reduced dimensions
Main Features
- Disconnectible connection elements for measurements on both sides without lifting the connections
- Allows the passage of current Input-Output and vice versa
specs
| Reference | 2173 | ||
| No. of pairs | 5 | ||
| Insulation resistance between contacts | MOhms | > 10 6 | |
| Contact resistance | MOhms | <10 | |
| Electrical stiffness | (See CA) |
> 1000 |
|
| Vdc | > 1500 | ||
| Anti-corrosion resistance | UNE 2050-2-11 | ||
| Dimensions | mm |
75 x 21 x 31.5 | |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
The 5-pair terminal blocks are designed to accommodate and connect up to 5 pairs of telephone cable (2x5 contacts) by displacing their insulation. Supplied in boxes of 5 units.
