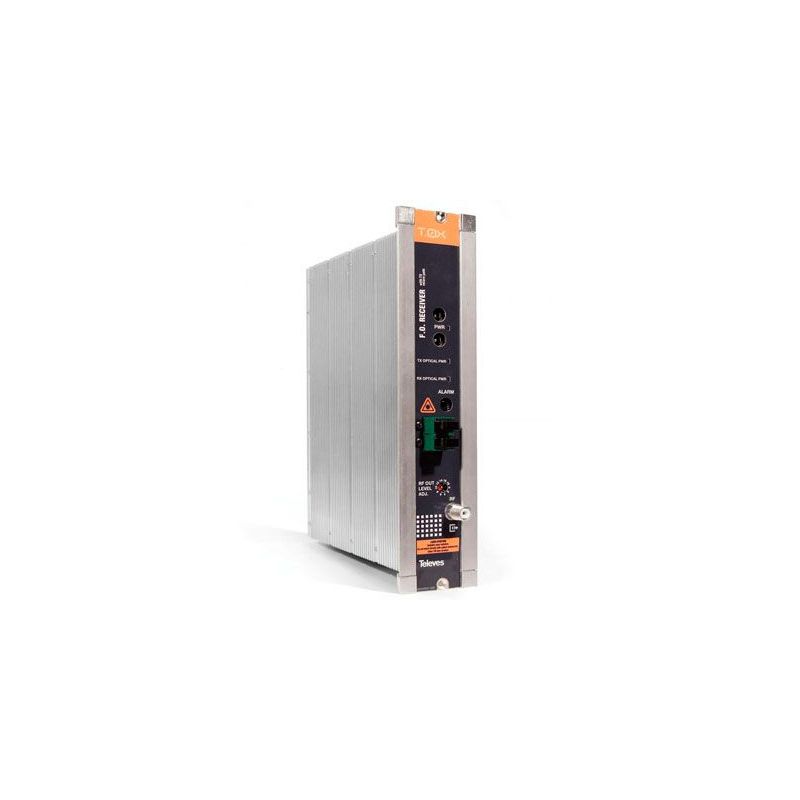

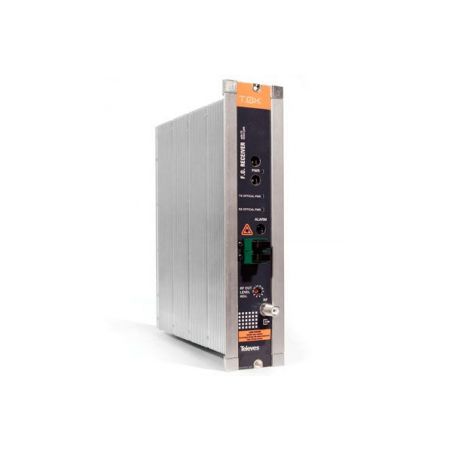

Optical Fiber receiver with return path Televes

Optical Fiber receiver with return path T.0X 1200..1600nm SC/APC -10 a 6 dBm Televes

Are optical receivers that deliver the original RF signal that has previously been converted by a fiber optic transmitter. Ref. 2336 and 233601 features return path optical transmitter. Multi-window input (1200 ···1600 nm). Wide input dynamic range (-10 to 6 dBm).

€949.03

Tax included

Reference televes-2336

Brand Televes

Optical Fiber receiver with return path T.0X 1200..1600nm SC/APC -10 a 6 dBm Televes

€949.03

Description
Product Details

Are optical receivers that deliver the original RF signal that has previously been converted by a fiber optic transmitter.

Features

Ref. 2336 and 233601 features return path optical transmitter.
Multi-window input (1200 ···1600 nm).
Wide input dynamic range (-10 to 6 dBm).
RF amplified output capable of delivering: 114dBμV in MATV, and 117dBμV in SAT IF.
Control signals available for monitoring optical input signal. Ref.2336 and 233601 also monitors the optical output signal in the return path.
Equipped with tension-free connections (relay) for use as an alarm when the received optical power falls.

Specifications

Reference					2336
USA version					233601
INPUT	F.O. Forward path	Wavelength		nm	1200...1600
		Detection bandwidth		MHz	1...3000
		Optical power received (max)		dBm	4/6
		Optical connector			SC/APC
	RF Return path	Frequency range		MHz	1...65 5...42 (1)
		Return path input level DIN45004B		dBμV	95
		Equivalent input noise figure @ 30 MHz		dbm/Hz	-152,5
		Return losses		dB	≥ 11
		Impedance		Ω	75

OUTPUT	RF Forward path	Frequency range		MHz	87...2150 54...2150 (1)
		Max. output level for CSO & CTB >= 60 dB(2)	MATV	dBμV/dBmV	93 / 33
			SAT IF	dBμV/dBmV	90 / 30
		Regulation margin		dB	0 - 18
		Return losses		dB	≥ 11
		Impedance		Ω	75
	F.O. Return path	Wavelength		nm	1310
		Optical power transmitted (max)		dBm	2/3 4/6 (1)
		Optical connector			SC/APC

GENERAL		Powering voltage		Vdc	12 - 24
		Consumption 24Vdc		mA	175
		Ingress protection		IP	20
		Dimensions (WxHxD)		mm	50 x 216 x 175
