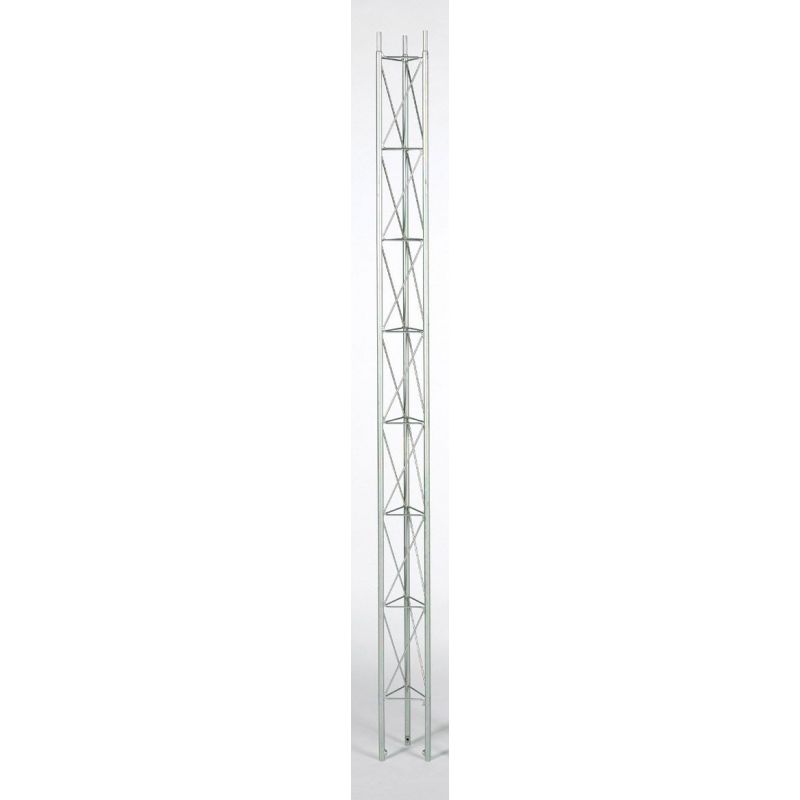

Intermediate section 2.5m turret series 180 SE RPR Televes

Tower 180 SE. Intermediate Section RPR 2.5m Televes 3017

€108.46
Tax included
Reference televes-3017
Brand Televes
Quantity
Available Now

Free shipping
180 SE RPR /Middle section 2,5m (Towers) Televes

Intermediate section 2.5m turret series 180 SE RPR Televes

€108.46

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

Intermediate section made of zinced steel and bi-chrome coating, are supplied in two types of finishing (RPR or poliester painting). They can be installed at heights from 1 to 50.5 m.

Depending on the model, they implement turned or plugged raccors (SE finishing) for its union.

Installation types (Mod. 180 y 360)

Section by section

Fixing the lower section to the base in the proper vertical position, and then mounting the consecutive intermediate sections, which will be fixed with the corresponding guy-wire; the assembly is carried out by climbing the already placed sections and raising subsequently the section to be placed, using for it the adequate elevating tools.
The climbing has to be made with the appropiate safety conditions (safety-belt, anchoring, etc.); there won’t be more than two sections without shoring up. In case of coinciding two sections without guy-wire, auxiliary guy-wire will be used for the bracing of the sections during the set-up. The tower will be balanced adjusting the tension of the guy-wire and the using of proper balance-appliances.

Complete tower

First assembling the tower over the ground and raising it, once mounted, by means of a crane. This system can be used only with towers of heights lower than
18 meters in the model 180 and heights lower than 26 meters in the model 360.

Safety

If the installation of the tower is made on the roof, flat roof or other place of a building, the installer will take the necessary measures according to the indications of the architect responsible of the building, in order to know the mechanical resistance of these zones.

Specifications

Model 180 SE
Main steel pipes 20x1.5
Transversal stainless steel rods mm 6
Max. height with mast 3m m 7.5
Length m 2.5
