SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5735 AND id_lang = 1 Lower section 3m turret series 180 RPR Televes
180 RPR / Lower section 3 m (Towers) Televes
search
  • 180 RPR / Lower section 3 m (Towers) Televes
  • 180 RPR / Lower section 3 m (Towers) Televes
  • 180 RPR / Lower section 3 m (Towers) Televes

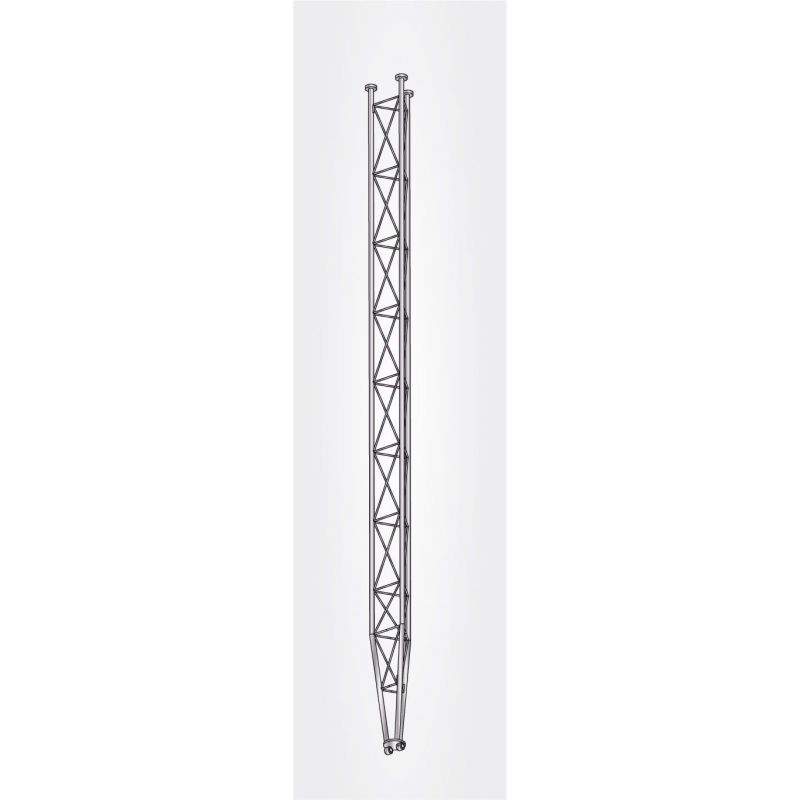

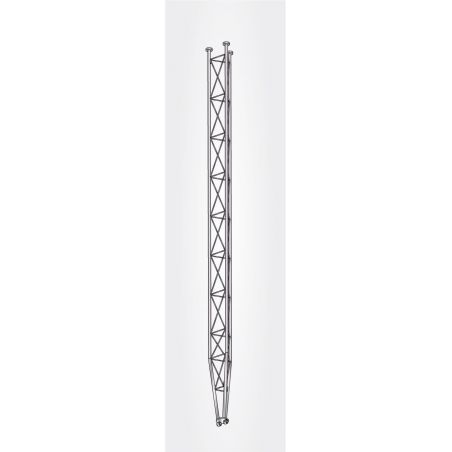

Lower section 3m turret series 180 RPR Televes

180 series tower. Bottom swinging section. RPR. 3m. Televes 3037

€220.86
Tax included
Reference televes-3037
Brand Televes
Quantity
Available in 24/48h

Free shipping
180 RPR / Lower section 3 m (Towers) Televes

Lower section 3m turret series 180 RPR Televes

€220.86

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

Tilting lower section.

Series 180 is composed of sections and bases or treated with RPR. Couplings between sections are made by threaded fittings. The maximum range of this model is set at 26.5m height, always depending on the environmental conditions.

Features

  • New racord
  • New design
  • Automated manufacturing

Types of installation (Mod. 180 and 360)

Section by section

It consists of fixing the lower section to the base and placing it in an upright position, leveling it, then the successive intermediate sections are mounted, which will be equipped with the corresponding winds; the assembly is done by climbing the sections already placed and then hoisting the section to be placed, using appropriate lifting equipment.
Climbing must be done with the appropriate safety means (safety belt, anchors, etc.) and no more than two sections will be left without braking. When two sections without winds coincide, auxiliary winds will be used for the bracing of the sections during assembly. The turret will be leveled by adjusting the tension of the winds and the use of convenient leveling devices.

Complete turret

It consists of assembling the turret previously on the ground and hoisting it once assembled by means of a crane.
This system can be used exclusively with turrets of less than 18 meters height in the model 180 and heights less than 26 meters in the 360 ​​model.

Security

When the installation of the turret is made on roof, roof or other place of a building, the installer will take all necessary precautions in agreement with the architect responsible for the building, in order to know the mechanical resistance of these areas.

Specifications

Reference 3037
 Description Lower section, tower 180
 Material (1) Steel ST 37-2, Ø 20 x 2 mm thickness
Re min. 235 N/m2 - Rn min. 360/510 N/m2
(2) Steel S 275 JR, Ø 6 mm
Re min. 275 N/m2 - Rn min. 410/560 N/m2
(3) Steel F626 (S 235), 10 mm thickness plate.
Re min. 235 N/m2 - Rn min. 340 N/m2
 Weight 12.8 Kg
 Surface facing the wind 0.27 m2 x 1.2 coef. = 0.273 m2
Length 3m
