SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5751 AND id_lang = 1 Lower section 3m turret series 360 RPR Televes
360 RPR / Lower section (Towers) Televes
search
  • 360 RPR / Lower section (Towers) Televes
  • 360 RPR / Lower section (Towers) Televes
  • 360 RPR / Lower section (Towers) Televes

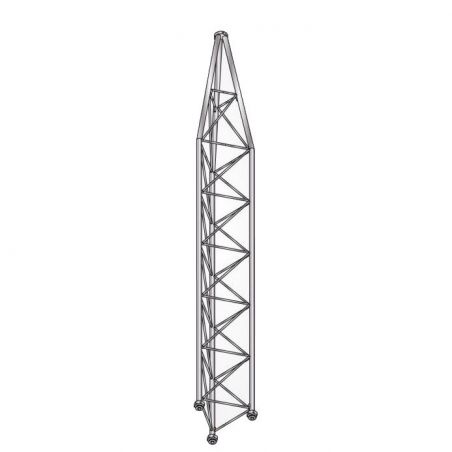

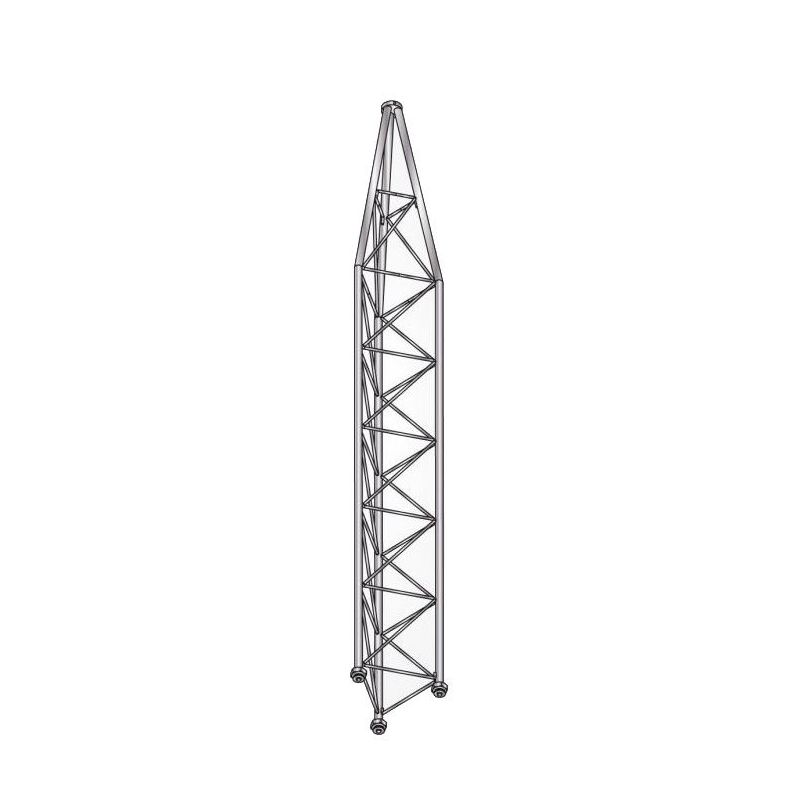

Lower section 3m turret series 360 RPR Televes

Series 360 tower. Bottom swinging section. RPR. 3m Televes 3086

€517.89
Tax included
Reference televes-3086
Brand Televes
Quantity
Available in 24/48h

Free shipping
360 RPR / Lower section (Towers) Televes

Lower section 3m turret series 360 RPR Televes

€517.89

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

The recommended working heights for towers in this series go up to a maximum of 47.5m, depending on the wind conditions that will be supported. New docking system that facilitates the joining of the sections.

Types of installation (Mod. 180 and 360)

Section by section

It consists of fixing the lower section to the base and placing it in an upright position, leveling it, then the successive intermediate sections are mounted, which will be equipped with the corresponding winds; the assembly is done by climbing the sections already placed and then hoisting the section to be placed, using appropriate lifting equipment.
Climbing must be done with the appropriate safety means (safety belt, anchors, etc.) and no more than two sections will be left without braking. When two sections without winds coincide, auxiliary winds will be used for the bracing of the sections during assembly. The turret will be leveled by adjusting the tension of the winds and the use of convenient leveling devices.

Complete turret

It consists of assembling the turret previously on the ground and hoisting it once assembled by means of a crane.
This system can be used exclusively with turrets of less than 18 meters height in the model 180 and heights less than 26 meters in the 360 ​​model.

Security

When the installation of the turret is made on roof, roof or other place of a building, the installer will take all necessary precautions in agreement with the architect responsible for the building, in order to know the mechanical resistance of these areas.

Specifications

Model 360
Main steel pipes 30x2
Transverse steel rods mm  10
Maximum height with mast of 3 meters m 50.5
