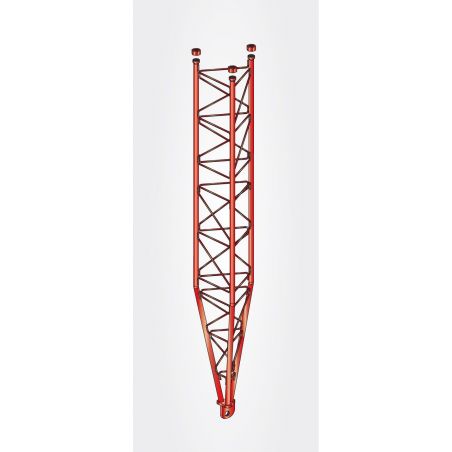

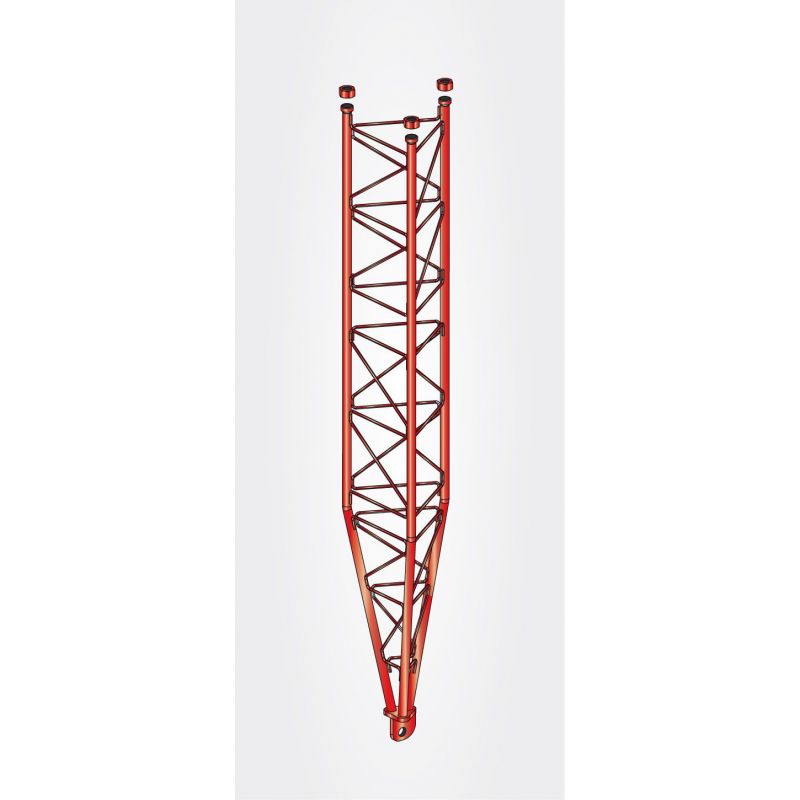

Lower section reinforced red 3m turret series 450 Televes
Series 450 tower. Lower section pivoted reinforced Zn + RO. 3m Televes 3130
€942.93
Tax included
Reference
televes-3130
Brand
Televes
Lower section reinforced red 3m turret series 450 Televes
€942.93
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
The 450 series offers stretches of different sturdiness to adapt to different heights depending on the wind speed. Recommended from heights of 46.5m, it can reach 81m and even 120m if combined with sections of the 550 series.
The surface plate (item 312901) allows the installation of the tilting base without the need for concrete.
Specifications
| Reference | 3130 | |
| Description | Reinforced lower section, tower 450. RED color. | |
| Material | (1) Steel ST 37-2, Ø 40 ext. x 3 mm thickness Re min. 235 N/mm2 - Rn min. 360/510 N/mm2 (2) Steel S 275 JR, Ø 12 mm Re min. 275 N/mm2 - Rn min. 410/560 N/mm2 (3) Steel F626 (S 235), 12 mm thickness plate Re min. 235 N/mm2 - Rn. 340 N/mm2 |
|
| Finishing | Galvanized + bi-chromated + painted with 60-80 μm thickness of electrostatic spray powder (RED RAL3020) |
|
| Weight | 43.5 Kg | |
| Surface facing the wind | 0.495 m2 x 1.2 coef. = 0.594 m2 | |
| Turrets Model | 450 | ||
| Kind | Normal | Reinforced | |
| Main steel pipes | mm | 38x2.6 | 40x3 |
| Transverse steel rods | mm | 10 | 10 |
| Maximum height with mast | m | 81 | 81 |
