SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5757 AND id_lang = 1 Intermediate section red 3m turret series 450 Televes
450 (Sections of 3m.) Intermediate Red Televes
search
  • 450 (Sections of 3m.) Intermediate Red Televes

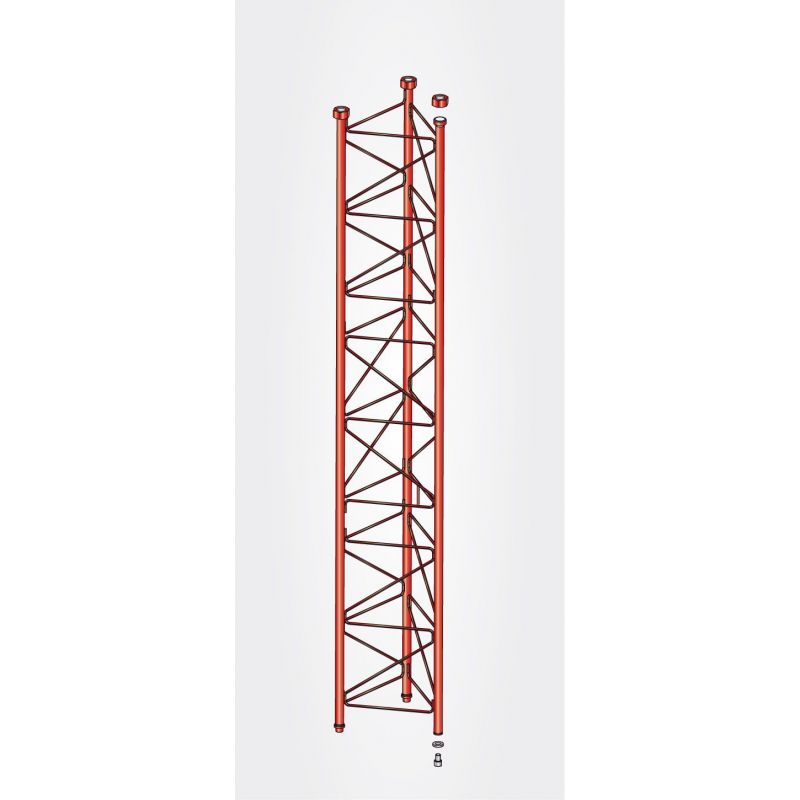

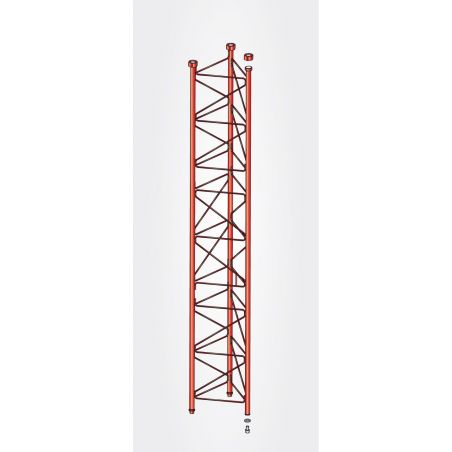

Intermediate section red 3m turret series 450 Televes

Series 450 tower. Intermediate section Zn + RO. 3m Televes 3131

€807.17
Tax included
Reference televes-3131
Brand Televes
Quantity
Available in 24/48h

Free shipping
450 (Sections of 3m.) Intermediate Red Televes

Intermediate section red 3m turret series 450 Televes

€807.17

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

The 450 series offers stretches of different sturdiness to adapt to different heights depending on the wind speed. Recommended from heights of 46.5m, it can reach 81m and even 120m if combined with sections of the 550 series.

The surface plate (item 312901) allows the installation of the tilting base without the need for concrete.

Features

Model 450

  • There are two new types of sections available: reinforced sections (thicker sections) latticework and walltube) and light sections.
  • The reinforced sections will be those located at the bottom of the tower and the light ones will be installed in the upper part. With this is possible to mount taller towers (up to 81 m).
  • Ideal for mounting towers of a height of 57 to 81m.

Specifications

Reference   3131
 Description Middle section, tower
ML450. RED color.
 Material (1) Steel ST 37-2, Ø 38 ext. x 2,6 mm thickness
Re min. 235 N/mm2 - Rn min. 360/510 N/mm2
(2) Steel S 275 JR, Ø 10 mm
Re min. 275 N/mm2 - Rn min. 410/560 N/mm2
 Finishing Galvanized + bi-chromated + painted with 60-80 μm
thickness of electrostatic spray powder (RED RAL3020)
(WHITE RAL9002)
 Weight 37.5 Kg
 Surface facing the wind 0.473 m2 x 1.2 coef. = 0.568 m2
MODEL TOWERS  450
Kind   Normal Reinforced
Main steel pipes mm 38x2.6 40x3
Transverse steel rods mm 10 10
Maximum height with 3 m mast m 81  81
