SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5758 AND id_lang = 1 Top section red color 3m turret series 450 Televes
450 (Sections of 3m.) Upper Red Televes
search
  • 450 (Sections of 3m.) Upper Red Televes

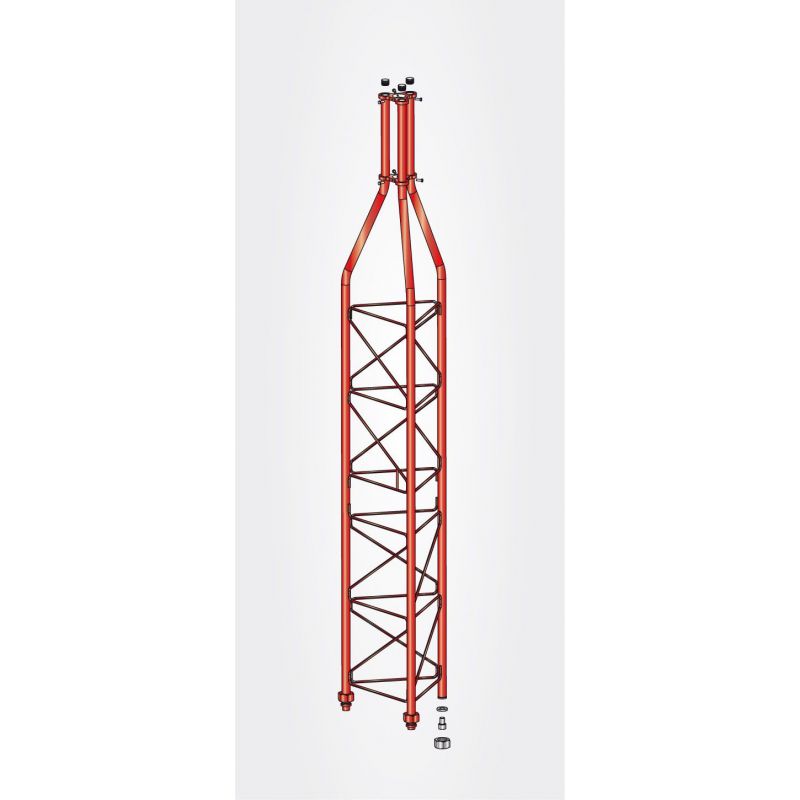

Top section red color 3m turret series 450 Televes

Tower series 450. Upper section Zn + RO. 3m Televes 3133

€942.93
Tax included
Reference televes-3133
Brand Televes
Quantity
Available in 24/48h

Free shipping
450 (Sections of 3m.) Upper Red Televes

Top section red color 3m turret series 450 Televes

€942.93

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

The 450 series offers stretches of different sturdiness to adapt to different heights depending on the wind speed. Recommended from heights of 46.5m, it can reach 81m and even 120m if combined with sections of the 550 series.

The surface plate (item 312901) allows the installation of the tilting base without the need for concrete.

Features

Model 450

  • There are two new types of sections available: reinforced sections (thicker sections) latticework and walltube) and light sections.
  • The reinforced sections will be those located at the bottom of the tower and the light ones will be installed in the upper part. With this is possible to mount taller towers (up to 81 m).
  • Ideal for mounting towers of a height of 57 to 81m.

Specifications

Reference   3133
 Description Upper section, tower ML450. RED color.
 Material (1) Steel ST 37-2, Ø 38 ext. x 2.6 mm thickness
Re min. 235 N/mm2 - Rn min. 360/510 N/mm2
(2) Steel S 275 JR, Ø 10 mm
Re min. 275 N/mm2 - Rn min. 410/560 N/mm2
(3) Steel F626 (S 235), 15 mm thickness plate
Re min. 235 N/mm2 - Rn. 340 N/mm2
 Finishing Galvanized + bi-chromated + painted with 60-80 μm
thickness of electrostatic spray powder (RED RAL3020)
 Weight 34.5 Kg
Surface facing the wind 0.432 m2 x 1.2 coef. = 0.518 m2
MODEL TOWERS  450
Kind   Normal Reinforced
Main steel pipes mm 38x2.6 40x3
Transverse steel rods mm 10 10
Maximum height with 3 m mast m 81  81
