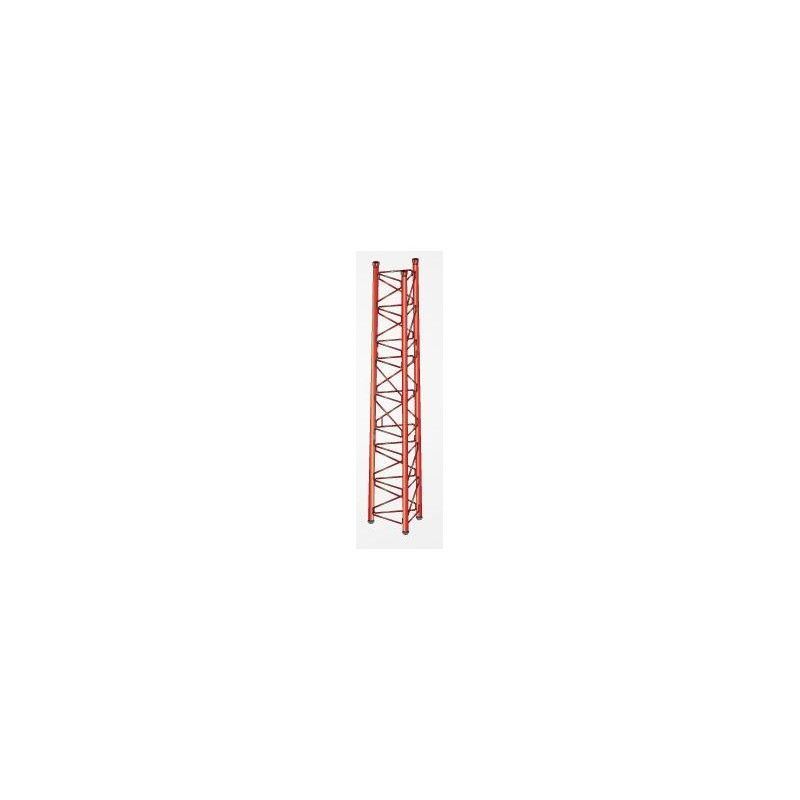

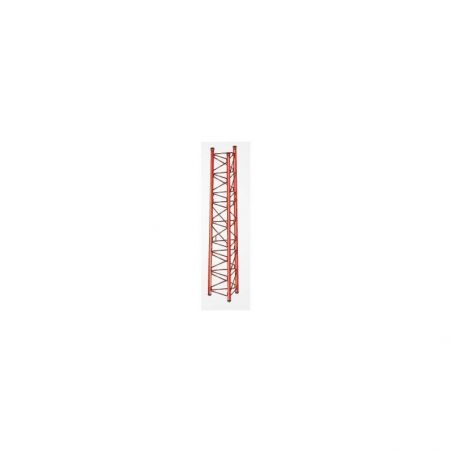

Transition section zinc + paint series 550 to 450 red 3m Televes

Transition tower series 550 to 450. Zn + RO. 3m. Televes 3141

€1,750.10
Tax included
Reference televes-3141
Brand Televes
Quantity
Available in 24/48h

Free shipping
550 (Sections of 3m.) Transition section 550 to 450 red Televes

Transition section zinc + paint series 550 to 450 red 3m Televes

€1,750.10

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

Conceived as a reinforcement of the 450 tower, this series is made up of support sections (lower and intermediate) to reach high heights (up to 120m) in extreme conditions (wind speed of 200Km / h).

Anchoring system using fittings. Maximum height of Tower 550: 140m (according to calculation conditions)

The surface plate (ref. 312901) allows the installation of the tilting base without using concrete.

Specifications

References 3141
Material (1) Steel ST 37-2 Ø 60 ext. x 4 mm thick.
Re min. 235 N / mm2 - Rn min. 360/510 N / mm2
(2) Steel S 275 JR Ø 14 mm
Re min. 275 N / mm2 - Rn min. 410/560 N / mm2
Finish Primed + Baked Lacquered with Electrostatic Powder
Polyester 60-80 μm (Red RAL 3020)
Weight Kg 82
Wind-facing surface m² 0.707 m² x 1.2 coef. = 0.848 m²
