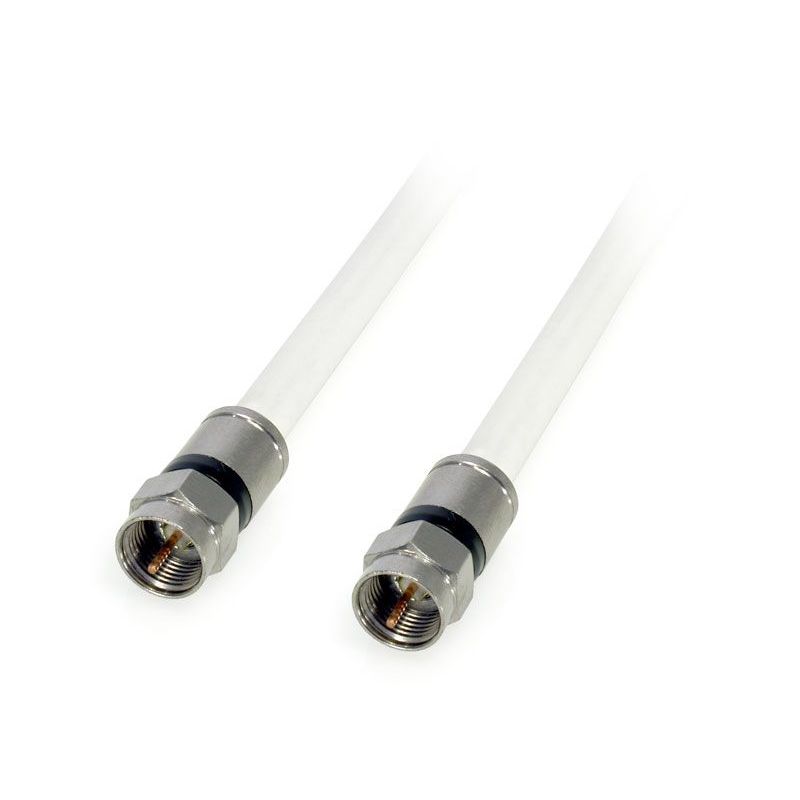

Cable lead compression F - F WHITE 1.5m Televes
search
  • Cable lead compression F - F WHITE 1.5m Televes

Coaxial extension with connectors male F 1.5m Televes

Pre-connectorized extension with a male F compression connector on each end, made of 1.5m coaxial cable. Televes 3851

€11.81
Tax included
Reference televes-3851
Brand Televes
Quantity
Available in 24/48h

Free shipping
Cable lead compression F - F WHITE 1.5m Televes

Coaxial extension with connectors male F 1.5m Televes

€11.81
A cable lead pre-terminated with compression male F connectors (Ref. 3802) and made with a trishield Class A+ coaxial cable: the SK2000+(ref. 4138).

Features

  • Length 1.5m
  • Male connector F compression at each end
  • High shielding
  • Class A +
  • Low attenuation

Specifications

References / Art. Nr. 3851 / FS-FS20
 Cable type Class A+
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Si
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >95 (typ. 125)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
