Cable lead compression F - PROEasyF Quick F WHITE 1.5m Televes

Coaxial extension with F male connectors White 1.5m Televes

Prolongador preconectorizado with male connectors F of compression and PROEasyF F fast in the other, realized with coaxial cable three shielded of class A +. White color. 1.5m Televes 3853

€11.81

Tax included

Reference televes-3853

Brand Televes

Coaxial extension with F male connectors White 1.5m Televes

€11.81

Description
Product Details

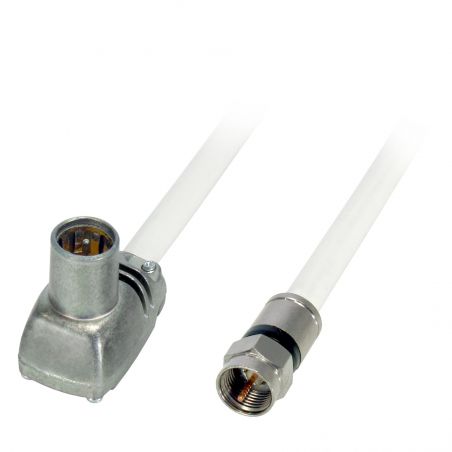

Cable lead pre-terminated with compression male “F” connector at one end (ref. 3802) and male PROEasyF “Quick F” at the other end (ref. 413410), and made with a trishield Class A+ coaxial cable: the SK2000+ (ref. 4138xx).

Features

Length 1.5m
Color White
Male F compression connectors and male PROEasyF F fast
Great screening
Class A +
Low attenuation

Specifications

References / Art. Nr.			3853xx / FS-FSW20xx
Cable type			Class A+
Inner conductor	Ø	mm	1.02
	Material		Cu (copper)
	Resistance	ohm/Km	22
Dielectric	Ø	mm	4.6
Dielectric	Material		PEE (foam polyethylene)
Over lapped foil	Material		Aluminium + Polyester
Braid	Material		CuSn (tinned copper)
	Resistance	ohm/Km	10.5
	Coverage	%	82
2nd shielding film			Si
Outer sheath	Ø	mm	6.7
Outer sheath	Material		PVC (polyvinyle clorhidre)
Minimum bending radius		mm	33.5
Shielding at 1GHz		dB	>95 (typ. 125)
Capacitance		pF/m	54
Impedance			75
Velocity ratio		%	84
Attenuations dB/m
Frequency	200	MHz	0.09
	500		0.14
	800		0.18
	1000		0.21
	1350		0.25
	1750		0.28
	2050		0.31
	2300		0.32
