SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5774 AND id_lang = 1 IEC male coaxial extender - PROEasyF IEC female White 1.5m Televes
search
  • Cable lead compression MALE IEC - PROEasyF FEMALE WHITE 1.5m Televes

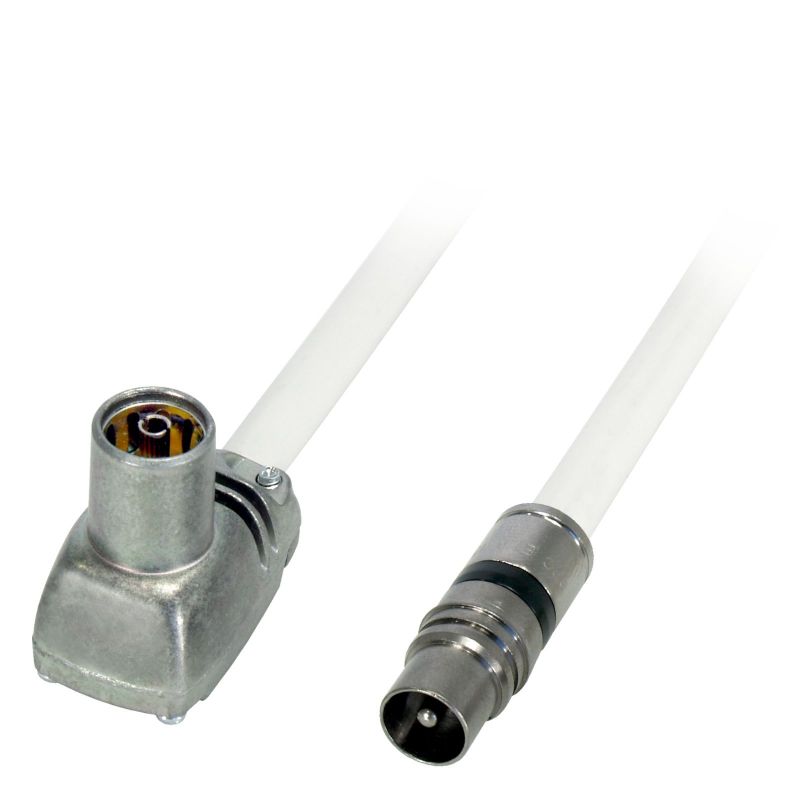

IEC male coaxial extender - PROEasyF IEC female White 1.5m Televes

Pre-connectorized extension with F IEC/CEI male connectors on one end and PROEasyF IEC/CEI female on the other, manufactured with coaxial cable three shielded class A++. 1.5m. White color. Televes 3858

€11.81
Tax included
Reference televes-3858
Brand Televes
Quantity
Available in 24/48h

Free shipping

IEC male coaxial extender - PROEasyF IEC female White 1.5m Televes

€11.81
Coaxial cable leadpre-connected with an F compression connector on one end (ref. 3802) and a male PROEasyF IEC connector (ref. 413210) on the other. Made of SK2000plus cable (ref. 4138xx), a Class A++-coaxial cable with triple shielded.
Suitable for professional use, besides the regular use in the connection between socket and TV devices.

Highlights

  • Copper coaxial cable conductors
  • Triple shielded, class A++. Eca Euroclass

Features

  • Length 1.5m
  • White-colour external PVC sheath
  • Connectors male IEC/CEI - female PROEasyF IEC/CEI



Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 105 dB
  • For 1000 MHz - 2000 MHz => SA > 95 dB
  • For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

References / Art. Nr. 3858
 Cable type Class A++
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Si
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >95 (typ. 125)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
