SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 76SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5791 AND id_lang = 1 Johansson 6702 Profiler Programmable ground amplifier 6 inputs 4G 5G LTE
  • -33%

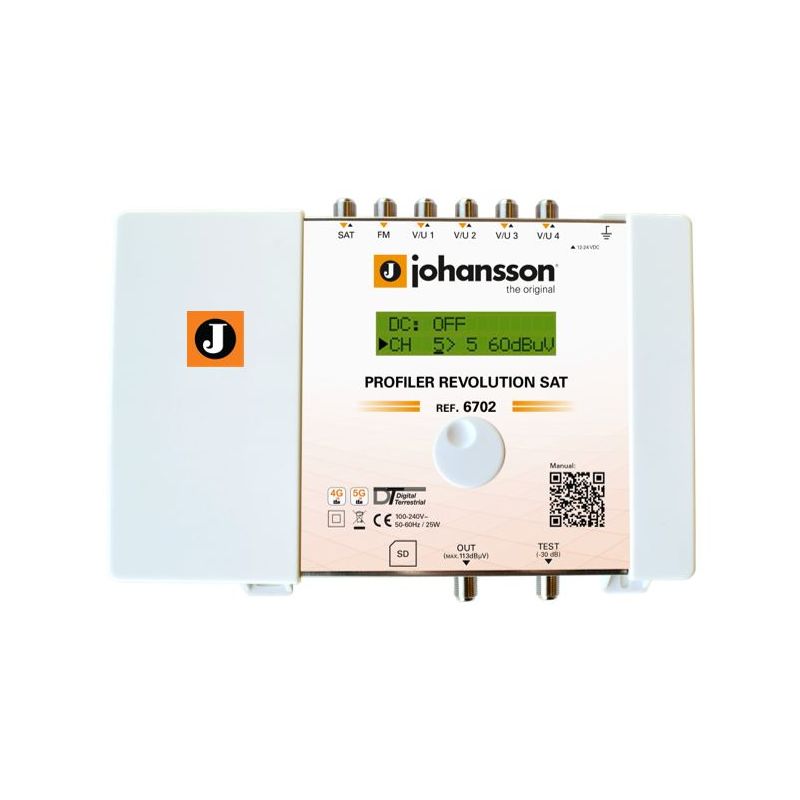

Johansson Profiler Revolution SAT
search
  • Johansson Profiler Revolution SAT

Johansson 6702 Profiler Programmable ground amplifier 6 inputs 4G 5G LTE

Johansson signal processing headend (6702). 6 inputs: FM, 4xVHF / UHF, SAT. Gain: 35dB (FM), 45dB (VHF), 70dB (UHF), 40dB (SAT). Output level: 131dB. High Selectivity, CAG. Channel processor. Input level intensity reading: (no field strength meter required). Output level: 110 (with 6 MUX). You can configure up to 32 filters of 1 or 2 adjacent channels

€291.85 €435.60 Save 33%
Tax included
Reference johansson-6702
Brand Johansson
Quantity
Available Now

Free shipping

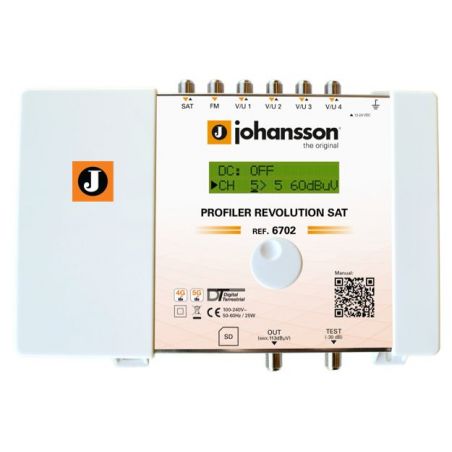

Johansson Profiler Revolution SAT

Johansson 6702 Profiler Programmable ground amplifier 6 inputs 4G 5G LTE

€291.85 €435.60 Save 33%

Johansson Signal Processing Header (6702)

  • 6 inputs: FM, 4xVHF / UHF, SAT
  • Gain: 35dB (FM), 45dB (VHF), 70dB (UHF), 40dB (SAT)
  • Output level: 131dB
  • High Selectivity, CAG
  • Channel processor
  • Input level intensity reading:
  • (no need for a field strength meter)
  • Output level: 110 (with 6 MUX)
  • You can configure up to 32 filters of 1 or 2 adjacent channels

* ref. 6700 similar product

Characteristics

  • Input level intensity reading - no field strength meter required
  • It can process more than 50 channels (terrestrial and satellite)
  • Can convert a wide selection of terrestrial channels
  • The most powerful filters on the market (50 dB in adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Flexible matrix: complete flexibility in assigning filters from any input
  • Made in Europe, for worldwide application
  • The Profiler Revolution SAT facilitates easy setup
  • RED compliant (selictivity rating 0 - 1 - 2 - 3 - 4)

Specifications

Model6702
Tickets - 1 SAT + 1 FM + 4 VHF / UHF
Departures - 1 main (SAT-FM-VHF-UHF) + 1 test port (-30dB)
Frequency range MHz
MHz
MHz
MHz		 SAT: 950 - 2400
FM: 88 - 108
VHF: 174 - 240
UHF: 470 - 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Entry level dBµV
dBµV
dBµV
dBµV		 SAT: 40 - 95
FM: 37 - 77
VHF: 40 * - 109
UHF: 40 * - 109
SAT output power (-35dBc / IM3 2 port) dBµV 119 (-35dBc / IM3 2 carriers)
FM output power (60dB / IM3) dBµV 113 (60dB / IM3)
VHF / UHF output power (60dB / IM3) dBµV 120 (60dB / IM3) 131 (35dB / IM3)
VHF / UHF power output with 1 MUX dBµV 113 (with 1 MUX)
VHF / UHF power output with 6 MUX dBµV 110 (with 6 MUX)
Number of channels - > 50
Add channels - 1 or 2 MUXes per filter
Conversion - Yes (from any VHF-UHF channel to any VHF-UHF channel)
Noise figure dB SAT: 8
General attenuator dB twenty
Gain dB
dB
dB
dB		 SAT: 40
FM: 35
VHF:> 70
UHF:> 70
VHF / DAB attenuator dB fifteen
Gain adjustment dB
dB
dB		 SAT: 20
FM: 20
VHF / UHF: AGC channel
Slope adjustment dB
dB		 SAT: 12
VHF / UHF: 9
Selectivity dB
dB / 1MHz		 SAT: 40 (@ 862 MHz)
VHF / UHF: 35

Return loss

 dB 10
Output MER dB
dB		 VHF: 35
UHF: 35
ESD protection - All entries
DC @ VHF / UHF input V 12 or 24

DC current

@ VHF / UHF input

 mA 100 (total for the 4 VHF / UHF inputs)

DC @ SAT input

 - 13V / 18V / Bypass & 0 / 22kHz selectable by SW

DC current

@ SAT entry

 mA 300

SD port

 - Yes (to copy con guration and update functions)
Operating temperature ° C -5 to +50
Power supply
Energy consumption		 V
W		 100 - 240
twenty
Dimensions mm 217 x 165 x 59
Weight kg 0.85

* For 64 QAM with code rate ¾.
