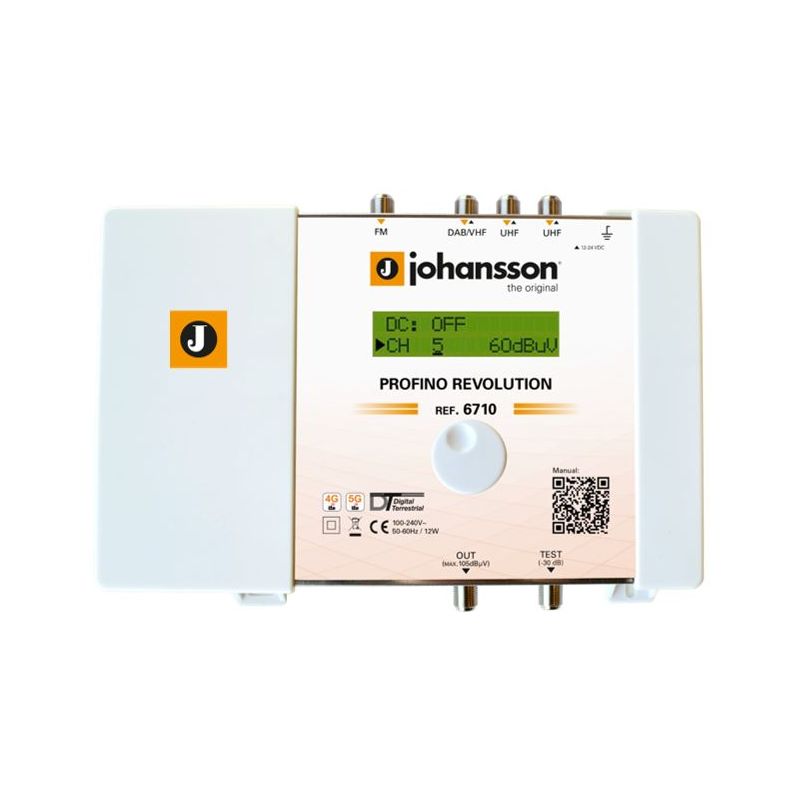

Johansson 6710 Profino Revolution 1 FM, 1 DAB/VHF and 2 UHF inputs
New version of model 6611L. Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power. Automatic protection LTE 5G (694MHz) - 4G (790 MHz). Up to 20 Channels can be filtered and amplified. The filters on adjacent channels are extremely sharp.
€203.69
€304.01
Save 33%
Tax included
Reference
johansson-6710
Brand
Johansson

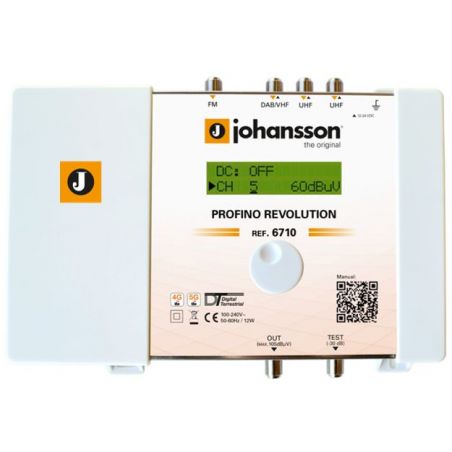

Johansson 6710 Profino Revolution 1 FM, 1 DAB/VHF and 2 UHF inputs
€203.69
€304.01
Save 33%
Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power. Automatic protection LTE 5G (694MHz) - 4G (790 MHz). Up to 20 Channels can be filtered and amplified. The filters on adjacent channels are extremely sharp.
* ref. 6700 similar product
Features
- Read-out of input level strength: no need for field strength meter
- Can process up to 20 channels
- Sharpest filters on the market (50 dB on adjacent channels)
- Real-time AGC on all individual multiplexes
- Flex matrix: complete flexibility in assigning filters from any input
- Made in Europe, for worldwide application
- The Profino Revolution is really easy to install
- RED compliant (selictivity classification 0 – 1 – 2 – 3 – 4)
Specifications
| Model | 6710* | |
|---|---|---|
| Inputs | - | 1 FM + 1 DAB/VHF + 2 UHF |
| Outputs | - | 1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB) |
| Frequency range | MHz MHz MHz |
FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862 |
| LTE protection | MHz | Automatic selection: 694, 790 or OFF |
| Input level | dBµV dBµV dBµV |
FM: 37 - 77 VHF: 45** - 109 UHF: 45** - 109 |
| FM output power (60dB/IM3) | dBµV | 113 |
| VHF/UHF output power (60dB/IM3) | dBµV | 115 |
| VHF/UHF output power with 1 MUX | dBµV | 105 |
| VHF/UHF output power with 6 MUX | dBµV | 105 |
| Conversion | - | No |
| Gain | dB dB dB |
FM: 35 VHF: 35 UHF: 45 |
| Gain adjustment | dB dB |
FM: 20 VHF/UHF: Channel AGC |
| General attenuator | dB | 20 |
| Slope adjustment | dB | 9 |
| Selectivity | dB/1MHz | 35 |
| Return Loss | dB | 10 |
| Output MER | dB dB |
VHF: 35 UHF: 35 |
| ESD protection | - | All inputs |
| DC @ VHF/UHF input DC Load current @ VHF/UHF input |
V mA |
12 or 24 100 (total for the 3 inputs) |
| SD port | - | No |
| Operating temperature | °C | -5 to +50 |
| Power Supply Power Consumption |
V W |
100 - 240 12 |
| Dimensions | mm | 217 x 165 x 59 |
| Weight | kg | 0,8 |
* Patent Pending
** For 64QAM with code rate 3/4
