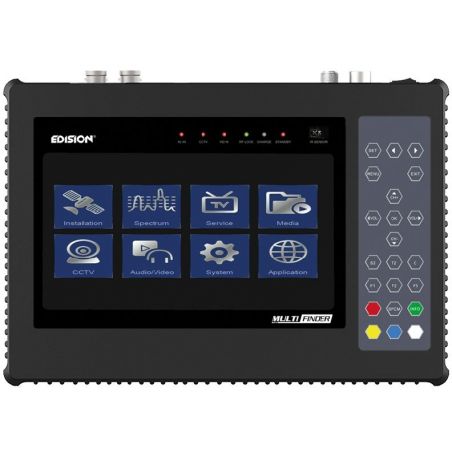

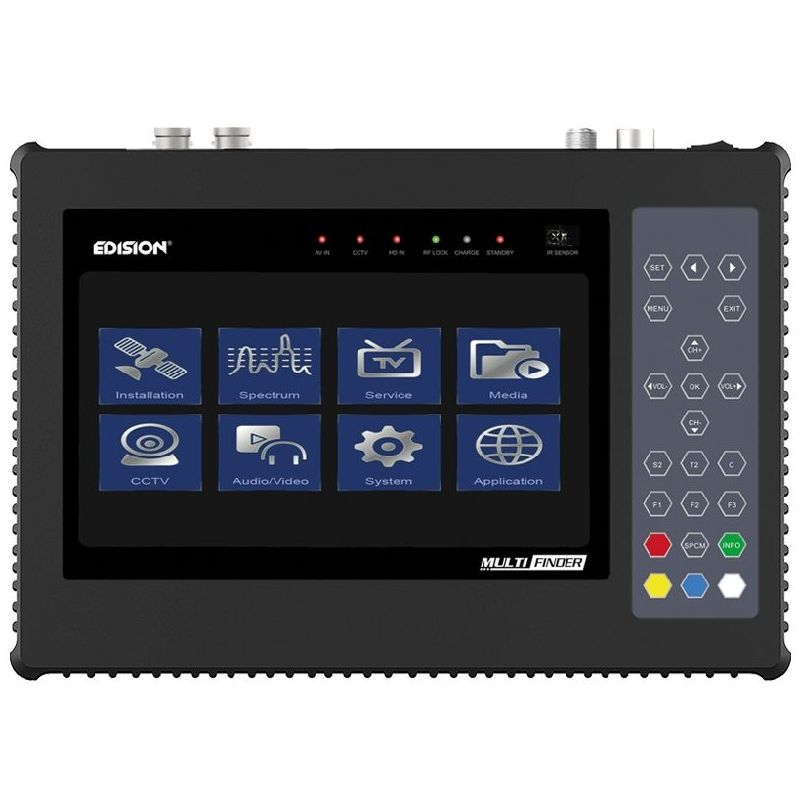

Edision MultiFinder - Field Meter DVB-S2/C/T2 h.265 CCTV

Edision multi-finder is a new comprehensive test instrument, designed to meet the technical needs of DVB and CCTV installations. It is a compact and 100% portable tester for DVB-S / S2, DVB-T / T2, DVB-C and CCTV systems.

€299.00
Tax included
Reference edision-07-01-0101
Brand Edision
Quantity
Available Now

Free shipping

Edision MultiFinder - Field Meter DVB-S2/C/T2 h.265 CCTV

€299.00

EDISION MULTI-FINDER is and all-around new testing instrument, designed to meet the technical needs of DVB & CCTV installations. The EDISION MULTI-FINDER is a compact, 100% portable tester for DVB-S/S2, DVB-T/T2, DVB-C and CCTV systems. It comes complete with all the necessary features for testing devices and signals in installations, as well as for examining any problems in signal reception and distribution. It features H.265/HEVC TV signal decoding, HDMI IN/OUT ports, AV IN/OUT, BNC IN/OUT and RS485 for PTZ Control in CCTV systems. It covers television signal systems using DVB-S/S2,T/T2/C digital modulations, and the most widely used CCTV signals such as AHD/CVI/TVI/CVBS. Plus, it features detachable Lithium 6300mAh battery and it is available in a surprisingly full and affordable package, with many useful accessories included as standard!

Features

  • 7" LCD color Display
  • Functions: Satellite DVB-S/S2, Terrestrial DVB-T/T2, Cable DVB-C & CCTV Testing Instrument
  • H.265 HEVC decoding support
  • DiSEqC 1.0, 1.1, 1.2, USALS and Unicable
  • Fast Spectrum Analyzer
  • Constellation Chart on DVB-S/S2
  • Transponder Data parsing on DVB-S/S2
  • Azimuth, Elevation & LNB skew tilt calculator
  • 6000 channels TV & Radio programmable
  • Favorite Channel list editing
  • CCTV Cameras support: AHD/TVI/CVI max.4MP & CVBS (576)
  • DC out support: 12V/1A
  • DC out for LNB power and testing active dipols and amplifiers
  • RS485 PTZ Control
  • HDMI & AV input/output support
  • Display Buttons with quick access function
  • Detachable Lithium Battery 6300mAh
  • USB Wi-Fi Support
  • Apps: YouTube, RSS Reader, Weather Forecast, WEB-TV
  • Ports: DC IN, ANT IN, LNB IN, LAN, HD OUT, AV OUT, RS485, RS232/AV IN, HD IN, BNC OUT, BNC IN, DC OUT, USB
  • Smart Card Reader
  • Software Upgrade by USB & HTTP

General

  • Dimensions: 233mm x 165mm x 50mm
  • Weight: 2 kg
  • Color: black
  • Warranty: 2 years

Package includes

  • Multi-Finder
  • Users Guide EN/DE/GR
  • Transportation bag
  • Protective Bag
  • Remote Control
  • Car Charger
  • Jack to AV Cable
  • Jack to RS232 Cable
  • BNC to BNC Cable
  • DC-OUT Adaptor Cable
  • PSU
