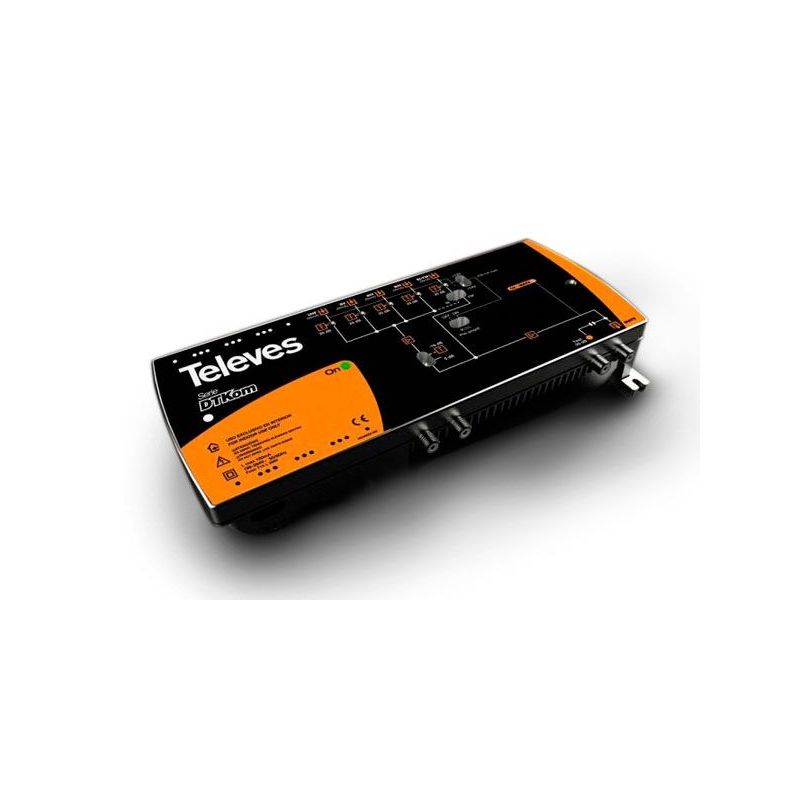

Headsets DTKOM 4 inputs 1 output U1-U2-V-FM Televes

Head station DTKom 4 inputs / 1 output FM-VHF-UHF-UHF. Range of power stations designed for both header and distribution use. Designed to facilitate adjustment processes, thanks to its arrangement of microswitches and trimmers that can be manipulated from the outside of the plant. Televes 4508

€475.71

Tax included

Reference televes-4508

Brand Televes

Headsets DTKOM 4 inputs 1 output U1-U2-V-FM Televes

€475.71

Description
Product Details

Range of high performance amplifiers, offering functionality and power, and designed to have direct access to all configuration parameters of the equipment.

Features

Push-pull and power-doubling technology amplifiers. (123 o 129 dBμV).
Specific components for optimal performance in terms of noise figure.
LED signaling the presence of RF signal.
DC line power for preamplifiers.
Gain switch: high/low..
High efficiency power supply unit.

Power doubling range

Up to 129 dBμV both in the VHF & UHF band.
Configurable with two outputs.

Push-pull range

Up to 123 dBμV both in the VHF & UHF band.
Configurable line power.

Specifications

Reference				4508
Inputs			bands	FM	VHF/BS	UHF1	UHF2
Frequency range			MHz	88-110	174-400	470-862	88-110
Gain (low/high)			dB	30	32/45	40/52	30
Gain adjustment range			dB	0-20	0-20	0-20	0-20
Output level	DIN45004B		dBμV	129
	EN50083	IMD3		126
		IMD2		120
	CTB, CSO, XMOD			113
Noise figure			dB	12	7	10	10
Power on inputs			Vdc	-	12	12	-
Max current through inputs			mA	-	70	70	-
AC Power consumption			W	16
