DTKom 5IN/1OUT U-BV-BIV-V-FM Televes
search
  • DTKom 5IN/1OUT U-BV-BIV-V-FM Televes

Headsets DTKOM 5 inputs 1 output U-BV-BIV-V-FM Televes

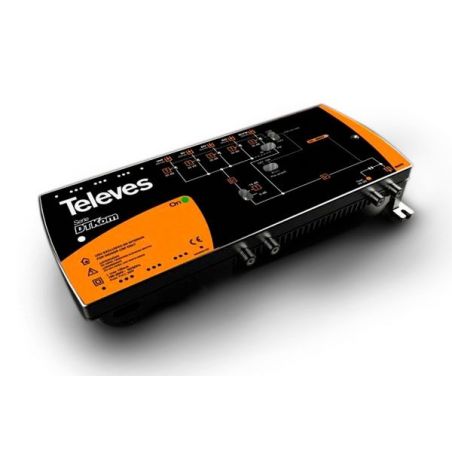

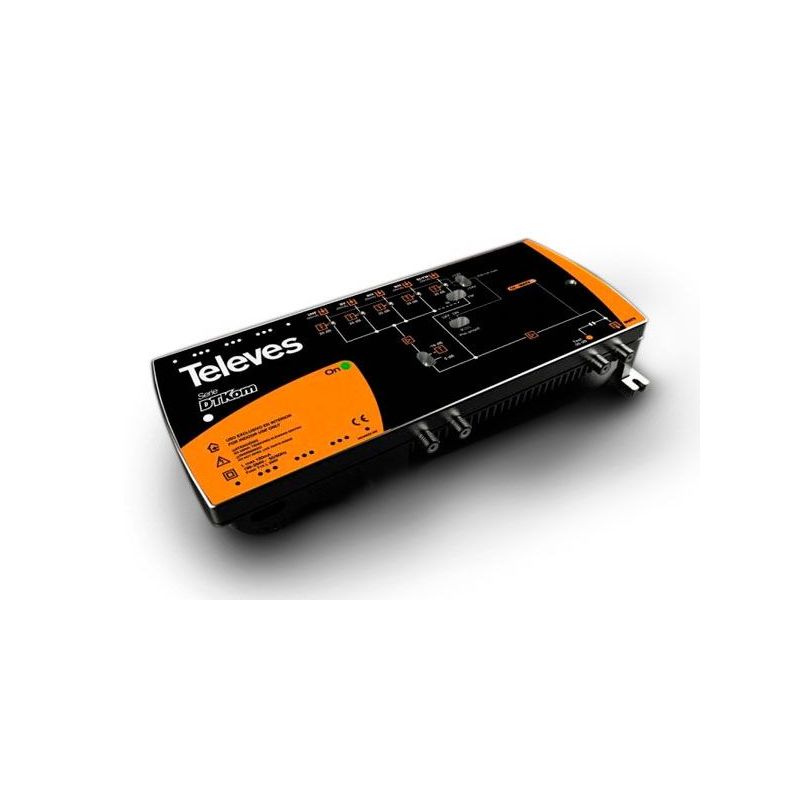

Head station DTKom 5 inputs / 1 output FM-VHF-BIV-BV-UHF. Range of power stations designed for both header and distribution use. Designed to facilitate adjustment processes, thanks to its arrangement of microswitches and trimmers that can be manipulated from the outside of the plant. Televes 4509

€499.90
Tax included
Reference televes-4509
Brand Televes
Quantity
Available in 24/48h

Free shipping
DTKom 5IN/1OUT U-BV-BIV-V-FM Televes

Headsets DTKOM 5 inputs 1 output U-BV-BIV-V-FM Televes

€499.90

Range of high performance amplifiers, offering functionality and power, and designed to have direct access to all configuration parameters of the equipment.

Features

  • Push-pull and power-doubling technology amplifiers. (123 o 129 dBμV).
  • Specific components for optimal performance in terms of noise figure.
  • LED signaling the presence of RF signal.
  • DC line power for preamplifiers.
  • Gain switch: high/low..
  • High efficiency power supply unit.

Power doubling range

  • Up to 129 dBμV both in the VHF & UHF band.
  • Configurable with two outputs.

Push-pull range

  • Up to 123 dBμV both in the VHF & UHF band.
  • Configurable line power.

Specifications

Reference 4509
 Inputs bands FM VHF/SBand BIV BV  UHF
 Frequency range  MHz  88-110 174-400  470-590 614-862 470-862
 Gain (low/high) dB  30  32/45  38/50 38/50 40/52
 Gain adjustment range dB  0-20  0-20  0-20  0-20 0-20
 Output level  DIN45004B dBμV  129
 EN50083  IMD3  126
 IMD2  120
 CTB, CSO, XMOD 113
 Noise figure dB  12  7  11  11  10
 Power on inputs Vdc  -  12  12  12  12
 Max current through inputs mA  -  50  0  50  50
 AC Power consumption W 17
