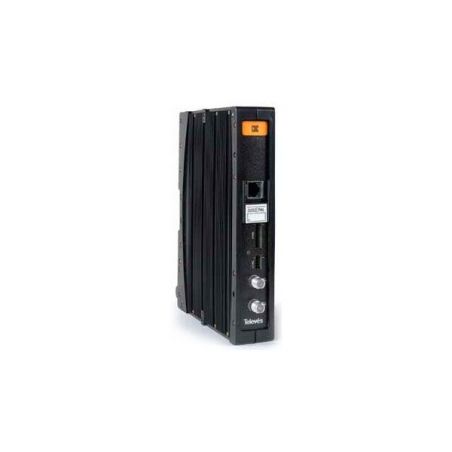

  • Headend controller CDC Televes

CDC headend controller Televes

The CDC headend controller allows you to remotely control the modules of a T05 or AVANT HD headend, by means of an external modem or by a locally connected PC. Associated to the CDC module it allows to control the headers via GSM / GPRS (quad band). Televes 5059

€273.70
Tax included
Reference televes-5059
Brand Televes
Quantity
Available in 24/48h

Free shipping

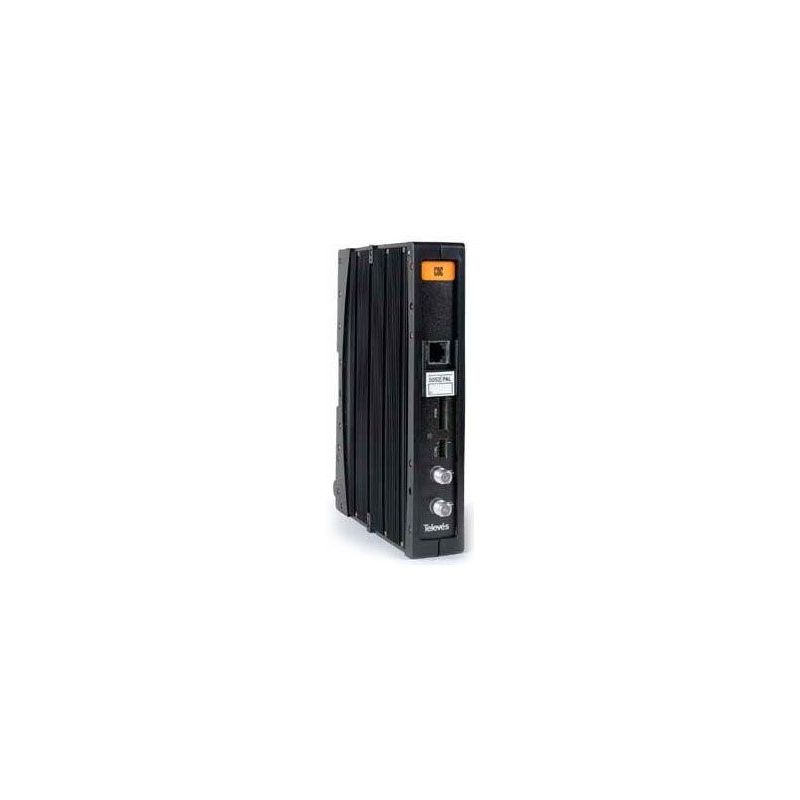

Headend controller CDC Televes

CDC headend controller Televes

€273.70

The CDC headend manager allows the remote management of a T05 headend or AVANT HD, it can either be done via an external modem or a locally plugged in PC.

The purpose of the headend manager

  • Allow to configure and monitor any of the controllable devices in the headend from one point with a SW compatible with Windows.

The CDC system will allow you to, amongst other things, the following

  • Monitor and/or configure remotely any of the settings in the headend.
  • Upload of a new configuration with the press of a button, avoiding the configuration of the modules one by one.

Connections

  • SIM card reader
  • Connector that implements serial port (TX / RX) for communication with CDC (ref 5059)
  • Power BUS Connector
  • LED indicators of PWR and STATUS
  • GSM antenna

Specifications

Work frequencies
Mode Frec, TX (MHz) Frec, RX (MHz) Channels (ARFC) TX-RX oXset (MHz)
E-GSM-900 890.0-914.8 935.0-959.8 0-124 45
  880.2-889.8 925.2-934.8 975-1023 45
GSM-850 824.2-848.8 969.2-893.8 128-251 45
DCS-1800 1710.2-1784.8 1805.2-1879.8 512-885 95
Reference  5863
GSM radio interface Potency of transmission GSM 850/9000   33
DCS 1800/PCS 1900 dBm 30
Reference sensitivity

 GSM 850/900   -107
DCS 1800/PCS 1900   -106
GSM antenna Input power W W> 2 (peak)
Absolute ROE   ≤10:1
Recommended ROE   ≤ 2:1
Gain (ref. Dipole λ / 2) dBi 1.5 ··· 3
Impedance ohm 50
Bandwidth EGSM MHz 80
GSM   150
DCS   170
PCS   140
Serial interface Standard AT commands AT Hayes Standard Command Set. ETSI GSM 07.07 speci @ cation for AT commands and speci c GPRS commands. Specification GSM 07.05 of AT commands for SMS and CBS (Cell Broadcast Service). Commands compatible with FAX Class 1.
Maximum Baud Rate (UART RS232 TX / RX)      CMOS levels; 115.2 Kbps
General Power requirements    W 1.65 W (330 mA to 5V) with active call 0.25 W (50 mA to 5V) with the modem registered in GSM network waiting for call
Working temperature (max.)    oC 45
Protection index     IP20
Dimensions (W x H x D)   mm 50 x 197 x 163
