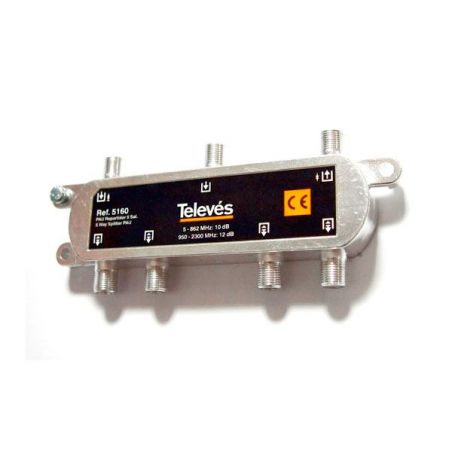

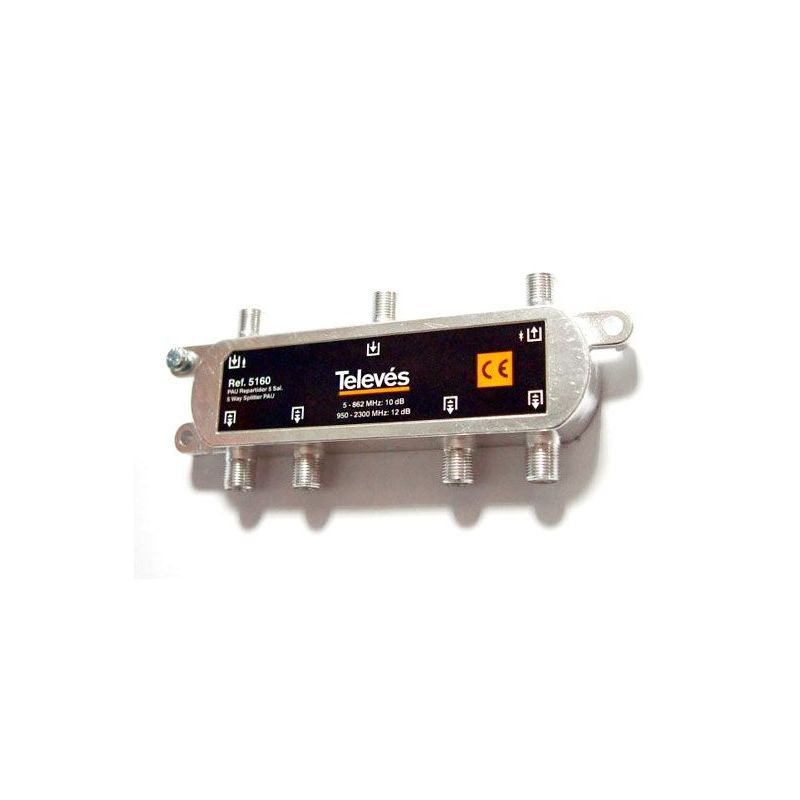

Distributor 5 outputs 10/12dB + PAU connectors F Inside Televes
Indoor distributor with F connectors. 5-2400MHz band. Connector F. 5 outputs. 10/12dB + PAU. Televes 5160
€15.94
Tax included
Reference
televes-5160
Brand
Televes
Distributor 5 outputs 10/12dB + PAU connectors F Inside Televes
€15.94
Indoor distributor with F connectors.
Features
- 10/12dB + PAU
Specifications
| Reference | 5160 | |||
| Nº of outputs | nº | 5 | ||
| Frequency range | MATV | IF SAT | ||
| Insertion loss In -> Out | dB | 10 | 12 | |
| Rejection between outputs | > 20 | |||
| Screening | 30-300 MHz | > 85 | ||
| 300-470 MHz | > 80 | |||
| 470-1000 MHz | > 75 | |||
| 1000-2000 MHz | > 55 | |||
| Max Current through Out - In | A | 1 | ||
| Dimensions(Wid x Hei x Dep) | mm | 135x55x26 | ||
| Weight | gr | 175 | ||
