Distributor 6 outputs 14/14dB + PAU easyF Inside Televesa
Interior delivery with EasyF connectors. Band 5-2400MHz. 6 outputs. 14/14dB + PAU. Televes 5430
€24.01
Tax included
Reference
televes-5430
Brand
Televes

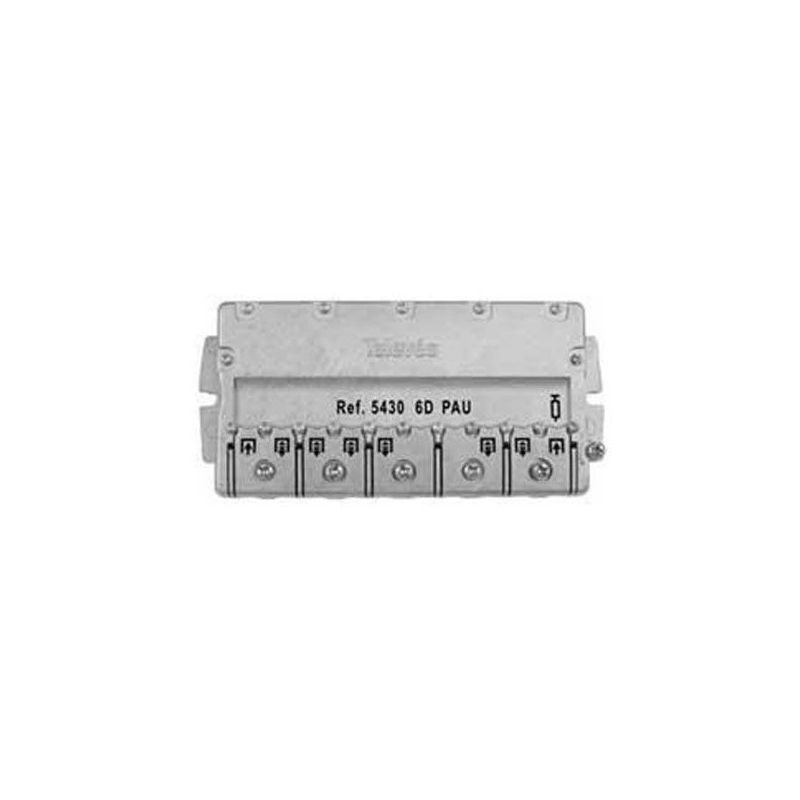

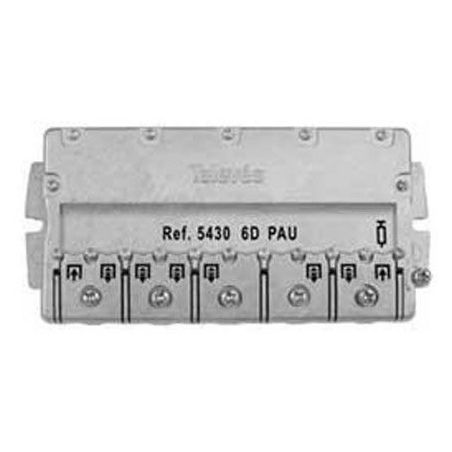

Distributor 6 outputs 14/14dB + PAU easyF Inside Televesa
€24.01
Indoor splitter with the easyF flange connection system that combines the advantages of the flange and F connector in a single type of connection that saves connection time and money to the installer. See mechanical details.
The use of this type of connection saves more than 50% in the time of installation, providing also a firm and safe connection and complying with the most demanding standards of electromagnetic compatibility.
Specifications
| Reference | 5430 | |||
| Nº of outputs | nº | 6 | ||
| Frequency range | MATV | IF SAT | ||
| Insertion loss In ->Out 1...8 | 1 | dB | 14 | 14 |
| 2 | 14 | 14 | ||
| 3 | 12 | 12 | ||
| 4 | 12 | 12 | ||
| 5 | 13 | 11 | ||
| 6 | 13 | 11 | ||
| 7 | - | - | ||
| 8 | - | - | ||
| Output rejection | dB | > 28 | > 28 | |
| Max current Out-In | mA | - | ||
| Max voltage | Vdc | - | ||
| Dimensions (Wid x Hei x Dep) | mm | 108×59×15 | ||
| Weight | gr | 258 | ||
