SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5970 AND id_lang = 1 Derivator 5-2400 MHz EasyF connector 6 outputs 24dB type B Televes
6D 24 dB (Floor 4, 5)B Televes
search
  • 6D 24 dB (Floor 4, 5)B Televes

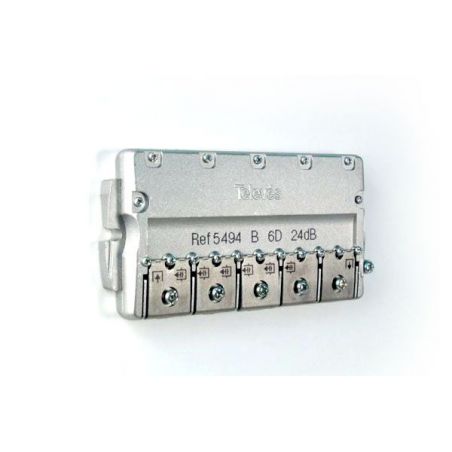

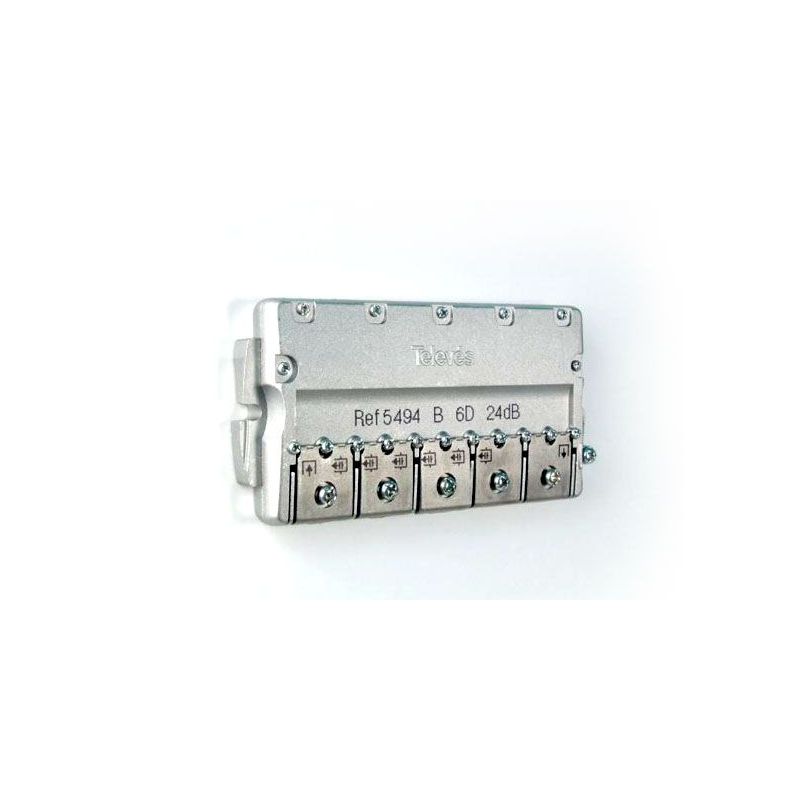

Derivator 5-2400 MHz EasyF connector 6 outputs 24dB type B Televes

5 - 2400 MHz band shunt. EasyF connector. 6 outputs. 24dB. Type B. Inside. Televes 5494

€23.37
Tax included
Reference televes-5494
Brand Televes
Quantity
Available in 24/48h

Free shipping
6D 24 dB (Floor 4, 5)B Televes

Derivator 5-2400 MHz EasyF connector 6 outputs 24dB type B Televes

€23.37

Indoor shunt with easyF flange connection system that combines the advantages of flange and F connector, saving connection time and money to the installer.

The use of this type of connection saves more than 50% in the time of installation, also providing a firm and secure connection, and complying with the most demanding standards of electromagnetic compatibility.

Features

  • The innovative and easy F connector provides the advantages of the S & C connector and the F connector.
  • Totally armored.
  • They allow an IN-OUT current bypass.

Specifications

Reference  5494
 Frequency range  SMATV
 Outputs nº 6
 Number of floors 4 and 5
Insertion loss In -> Out  Ret. C. C. dB <6
 MATV 3
 IF SAT 4
 Tap loss In -> Tap  Ret. C. <26
 MATV 24
 IF SAT 24
 Rejection Out ->Tap  Ret. C. > 35
 MATV > 30
  IF SAT >25
Rejection Tap ->Tap  Ret. C. > 45
 MATV > 45
  IF SAT > 45
 Max Voltage Vdc 40
 Max current through Out-In mA 300
 Dimensions(Wid x Hei x Dep) mm 122x59x14
 Weight gr 258
