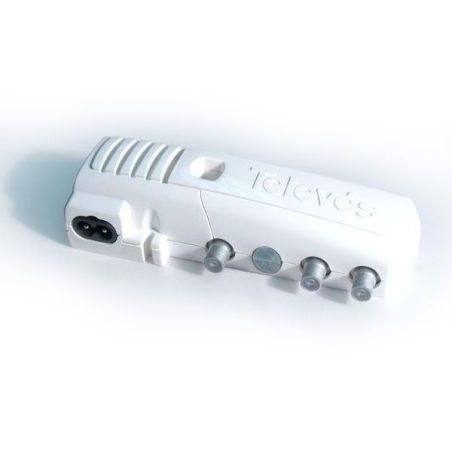

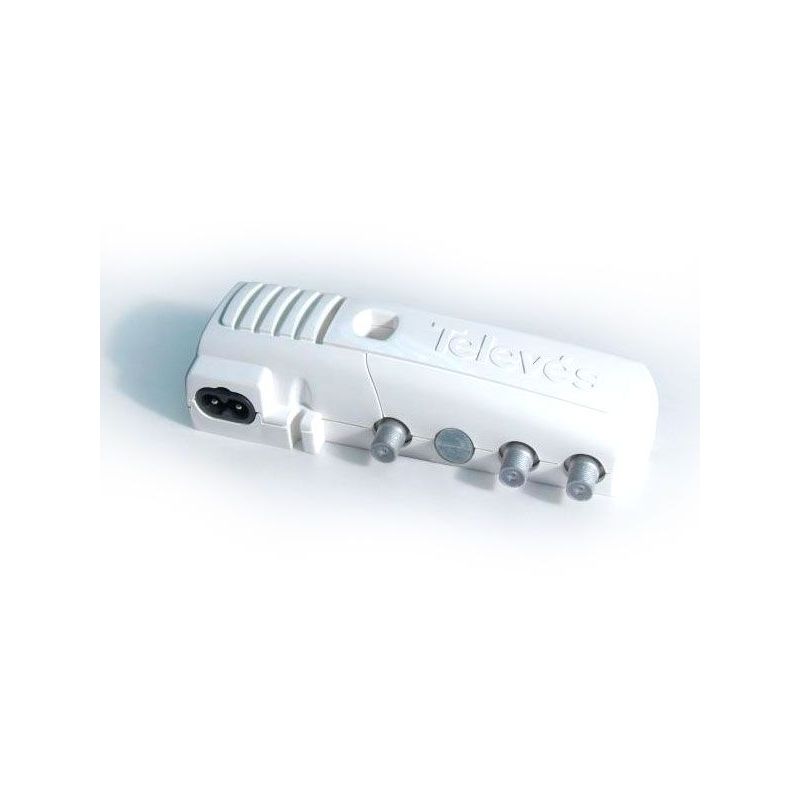

Indoor amplifier housing 1 output+TV 47-862MHz 17/27dB Televes
Indoor amplifier housing 1 output and 1 TV output. Connector F. 47 - 862MHz. 17 / 27dB. Small TV signal amplifier that facilitates its installation in boxes of 100 x 150mm. Flip-up lid for access to gain controls. Televes 5519
€49.88
Tax included
Reference
televes-5519
Brand
Televes
Indoor amplifier housing 1 output+TV 47-862MHz 17/27dB Televes
€49.88
Wide range of housing amplifiers for MATV applications, characterized by their power output and low consumption.
Features
- Fully automated manufacturing.
- 50% less consumption than a standard amplifier.
- Low noise figure
- Adjustable gain
Specifications
| Reference | 5519 | |||
| Frequency range | MHz | 47-320 / 470-862 | ||
| Gain | Output | dB | 17/27 | |
| TV | -3/7 | |||
| Gain adjustment | dB | 12 | ||
| Output level DIN45004B | dBμV | 105 | ||
| Noise figure | dB | 5 | ||
| Power on inputs | Vdc | - | ||
| Max current through inputs | mA | - | ||
| AC Power consumption | W | 2 | ||
| Protection index | IP | 20 | ||
| Dimensions (Wid x Hei x Dep) | mm | 145 x 45 x 35 | ||
