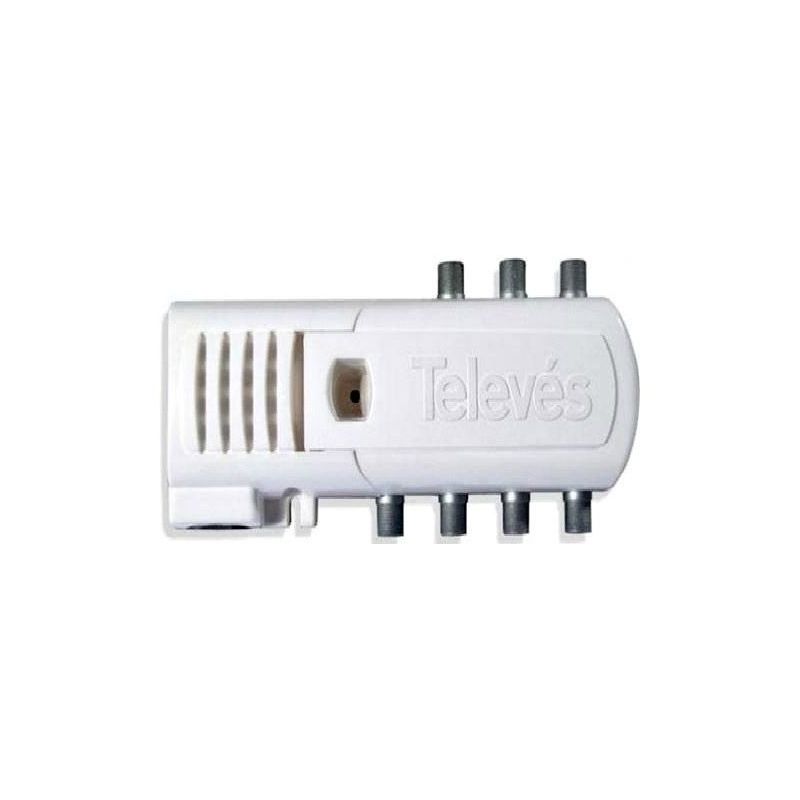

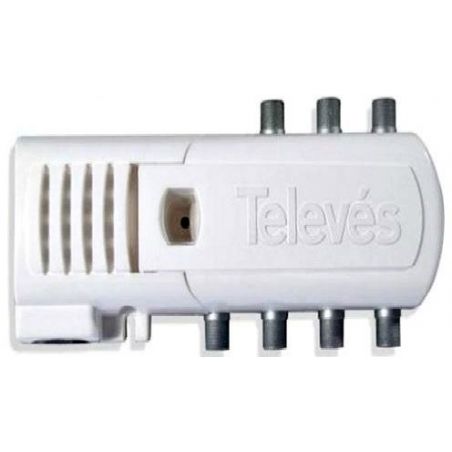

Interior amplifier housing 6S+TV to connectors F range MATV 47-862 MHz Televes
Amplifier of housing of 6 outputs connectors F. 47-862MHz. 16dB Vs 103dBμV. Televes 5531
This product is replaced by the "F" domestic amplifier 1i/6o: 47...694MHz G 14dB Vs 95dBμV LTE700 Blister
€62.01
Tax included
Reference
televes-5531
Brand
Televes
Interior amplifier housing 6S+TV to connectors F range MATV 47-862 MHz Televes
€62.01
Wide range of housing amplifiers for MATV applications, characterized by their power output and low consumption.
Features
- Fully automated manufacturing.
- 50% less consumption than a standard amplifier.
- Low noise figure
- Adjustable gain
- Up to 6 exits
Specifications
| Reference | 5531 | |||
| Frequency range | MHz | 47-862 | ||
| Gain | Output | dB | 16 | |
| TV | - | |||
| Gain adjustment | dB | 12 | ||
| Output level DIN45004B | dBμV | 103 | ||
| Noise figure | dB | 5 | ||
| Power on inputs | Vdc | - | ||
| Max current through inputs | mA | - | ||
| AC Power consumption | W | 2 | ||
| Protection index | IP | 20 | ||
| Dimensions (Wid x Hei x Dep) | mm | 145 x 60 x 35 | ||
