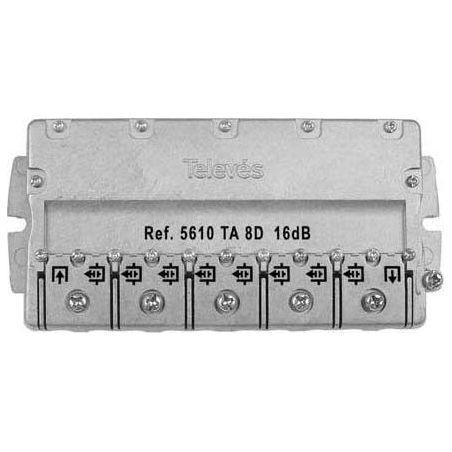

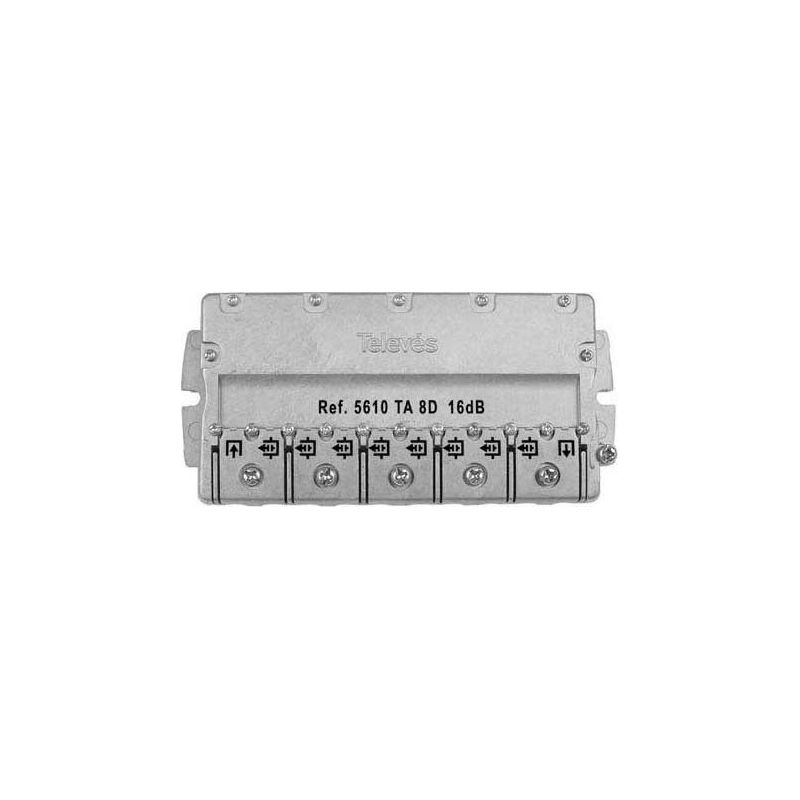

Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA Televes

5 - 2400 MHz band shunt. EasyF connector. 8 outputs. 16dB. Type TA. Inside. Televes 5610

€30.03
Tax included
Reference televes-5610
Brand Televes
Quantity
Available in 24/48h

Free shipping
Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA Televes

Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA Televes

€30.03

Indoor shunt with easyF flange connection system that combines the advantages of flange and F connector, saving connection time and money to the installer.

The use of this type of connection saves more than 50% in the time of installation, also providing a firm and secure connection, and complying with the most demanding standards of electromagnetic compatibility.

Features

  • The innovative and easy F connector provides the advantages of the S & C connector and the F connector.
  • Totally armored.
  • They allow an IN-OUT current bypass.

Specifications

Reference  5610
 Frequency range  SMATV
 Outputs nº 8
 Number of floors 1
Insertion loss In -> Out  Ret. C. C. dB <11
 MATV 5
 IF SAT 5
 Tap loss In -> Tap  Ret. C. <18
 MATV 16
 IF SAT 16
 Rejection Out ->Tap  Ret. C. > 30
 MATV > 30
  IF SAT >30
Rejection Tap ->Tap  Ret. C. > 30
 MATV > 30
  IF SAT > 30
 Max Voltage Vdc 40
 Max current through Out-In mA 300
 Dimensions(Wid x Hei x Dep) mm 122x59x14
 Weight gr 258
