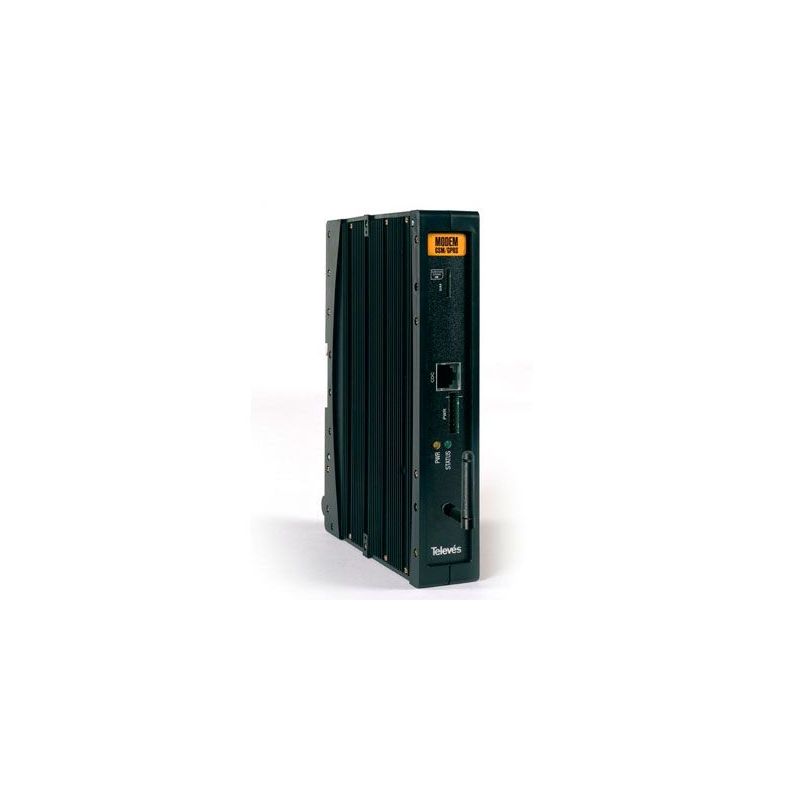

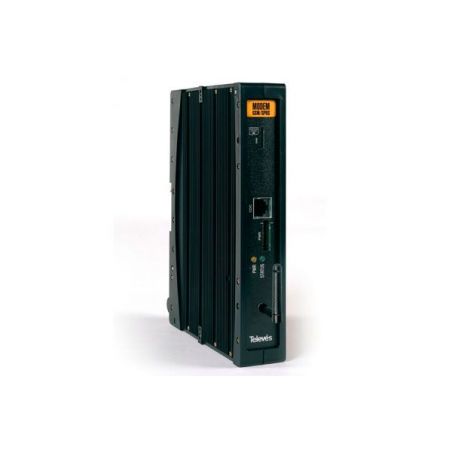

GSM modem Televes
GSM modem. Associated to the CDC module it allows to control the headers via GSM / GPRS (quad band). Televes 5836
€614.55
Tax included
Reference
televes-5836
Brand
Televes
GSM modem Televes
€614.55
When connected to the module CDC will allow the management of the headends via GSM/GPRS.
Specifications
| Reference | 5836 | |||
| GSM radio interface |
Transmission power |
GSM 850/9000 | dBm |
33 |
| DCS 1800/PCS 1900 | 30 | |||
| Sensitivity reference |
GSM 850/900 | - 107 | ||
| DCS 1800/PCS 1900 | - 106 | |||
| GSM antenna |
Input power | W | > 2 (peak) | |
| Absolute ROE | ≤ 10:1 | |||
| Recommended ROE | ≤ 2:1 | |||
| Gain (ref. Dipo λ / 2) | dBi | 1,5 ··· 3 | ||
| Impedance | ohm | 50 | ||
| Bandwidth |
EGSM | MHz |
80 | |
| GSM | 150 | |||
| DCS | 170 | |||
| PCS | 140 | |||
| Serial interface | Standard AT commands |
Set of AT Hayes standard commands. ETSI GSM 07.07 specification for AT commands and specific GPRS commands. GSM 07.05 specification of AT commands for SMS and CBS (Cell Broadcast Service). Commands compatible with FAX Class 1. |
||
| Maximum baud rate (UART RS232 TX/RX) | CMOS levels; 115.2 Kbps | |||
| General |
Power requirements | W | 1.65 W ( 330 mA @ 5V) with active call 0.25 W ( 50 mA @ 5V) with the modem registered in the GSM network in standby waiting for a call |
|
| Operating temperature (max.) | ºC | 45 | ||
| Protection index | IP 20 | |||
| Dimensions (W x H x D) | mm | 50 x 197 x 163 | ||
