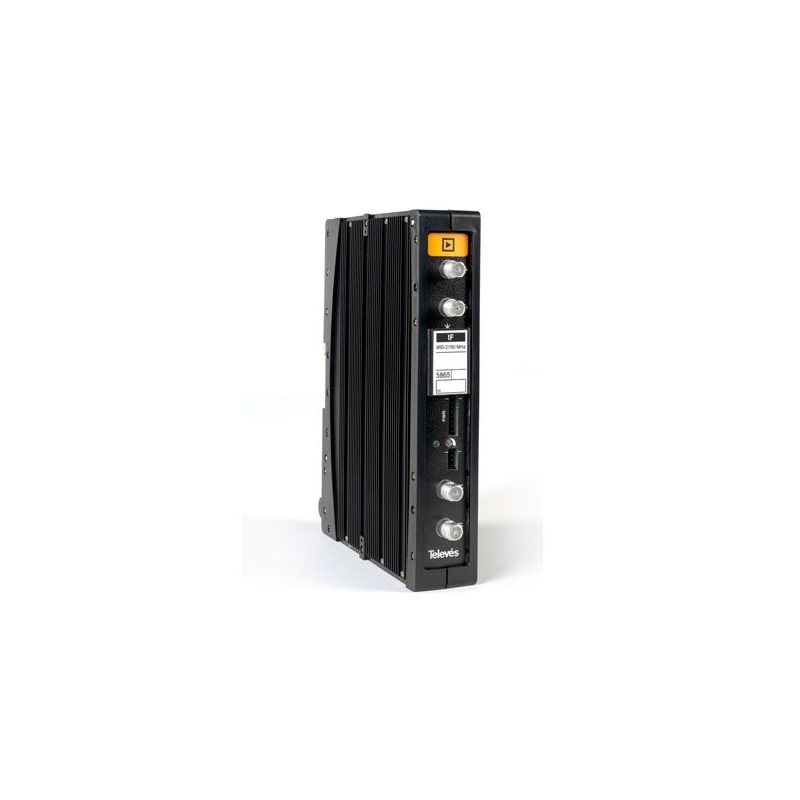

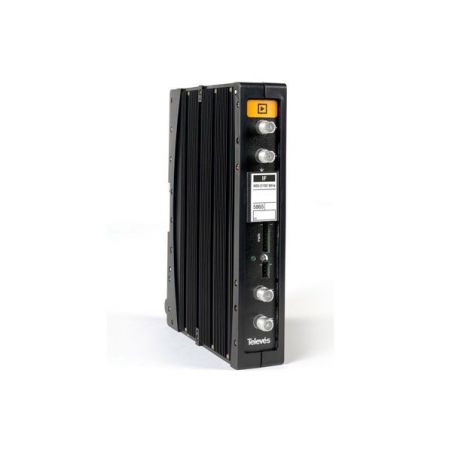

FI amplifier 950-2150 MHz

Features

• T05 amplifier unit, with hybrid technology, for satellite intermediate frequency.
• It has a high output voltage and a response with a 5 dB slope.
• Through its two inputs, you can combine terrestrial signals with IF signals.

Specifications

• Input frequency range MHz 950-2150.
• Gain (950 MHz) dB 35 ± 2.
• Gain (2150 MHz) 40 ± 3.
• Regulation margin 20.
• Output voltage (2 tones -35 dB) dBμV> 123.
• Connector "F".
• Vdc 15 power.
• Consumption mA 200.
