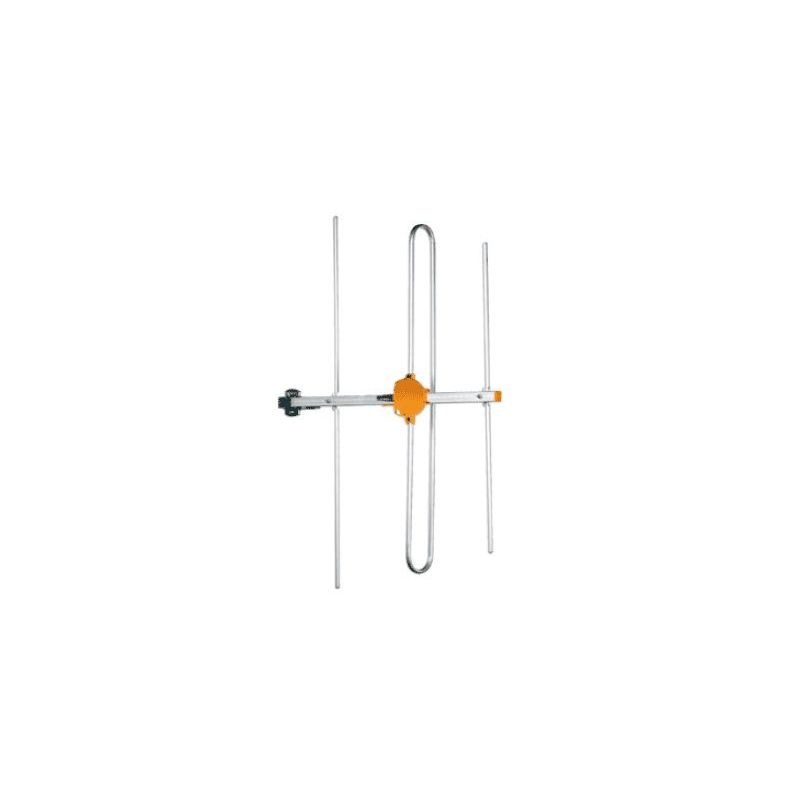

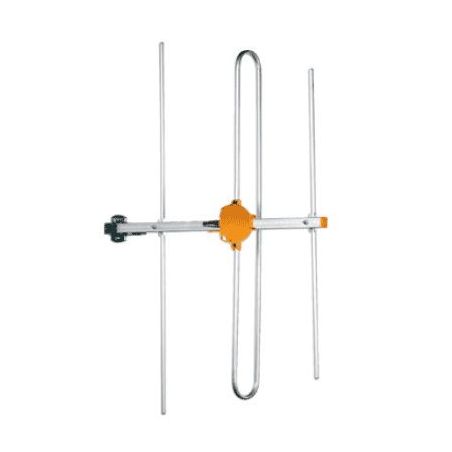

Pack of 5 DAB Televes Antennas

Pack of 5 terrestrial antennas of 3 elements, for VHF band III and DAB. 190-232 MHz. 3. Gain 8dB. Televes 105001

€288.95

Tax included

Reference televes-105001

Brand Televes

Pack of 5 DAB Televes Antennas

€288.95

Description
Product Details

Pack of 5 terrestrial antennas of 3 elements, for VHF band III and DAB.

Features

Composed of three elements (reflector, dipole and director element), it completely covers the band reserved for DAB transmissions.
Balun integrated in the connection box (connector F).
Made of aluminum (stainless).
Antenna specially designed for the reception of digital radio signals DAB (Digital Audio Broadcasting).
DAB / BIII channels 190-232 MHz.
8 dB of profit.
It incorporates an impedance adapter in its connection box.

Specifications

Reference			105001
Operating band		Ch.	DAB/BIII
Gain		dBi	8
Front-to-Back ratio		dB	>15
Length		mm	555
Wind load	800N/m²	N	36.5
	1100N/m²		50.2

Antenna height	m	≤ 20	>20
Wind speed	Km/h	130	150
Wind pressure	N/m2	800	1100
