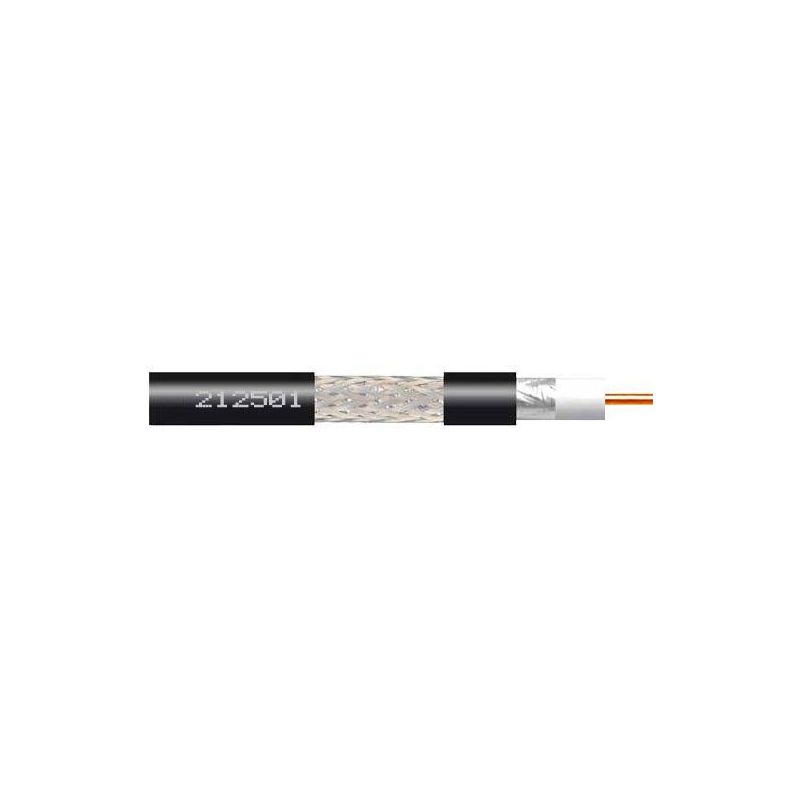

Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m
search
  • Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

Coil 100m coaxial cable T100 Fca/A 16PAtC Black Televes

Coaxial cable T-100 PE EN 50117-2-5. Fca Euroclase and Class A shield. 3GHz 16PAtC 1.3/4.8/6.6mm Black. 100m coils. Televes 212501

€0.86
Tax included
Reference televes-212501
Brand Televes
Quantity
Available in 24/48h

Free shipping
Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

Coil 100m coaxial cable T100 Fca/A 16PAtC Black Televes

€0.86

Coaxial cable for ICT 100 m. to implement the regulation for the Common Infrastructures of Telecommunications (TIC).
Black color cable to make it more concealed in any type of installation.

Stands out for

  • Internal conductor made of copper and aluminum mesh
  • Class A shielding
  • Euroclass Fca

Features

  • Outer PE cover in black
  • Characteristic impedance of 75 ohm
  • Available in reels of different footage

Specifications

Model 212501
INSERT COMPOSITION. CONDUCTOR - BROWN COPPER - DRILLED COPPER
Televes model T-100
Internal Explorer Ø mm 1.13
material - Copper
Resistance Ω / Km 20
Dielectric Ø mm 4.7
material - expanded polyethylene
Shield foil Aluminum + Polyester + Aluminum
Braid Resistance Ω / Km 27
material - Tinned copper
Fixing Ribbon None
Sealing Gel None
Shell Ø mm 6.6
color - black
Material - PE
Min. radius of bending mm 33
Shielding dB 75
Power pF / m 52
Usage type Outdoor
Meters in coil length / coil m 100

Frequency attenuation (MHz) 200 dB / m 0.08
500 0.13
800 0.16
1000 0.19
1350 0.22
1750 0.25
2050 0.28
2300 0.30
