SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 6061 AND id_lang = 1 Wood coil 500m coaxial cable CXT-1 Eca/A 17VAtC.A White Televes
Wood coil 250m coaxial cable CXT-1 17VAtC.A White Televes
search
  • Wood coil 250m coaxial cable CXT-1 17VAtC.A White Televes

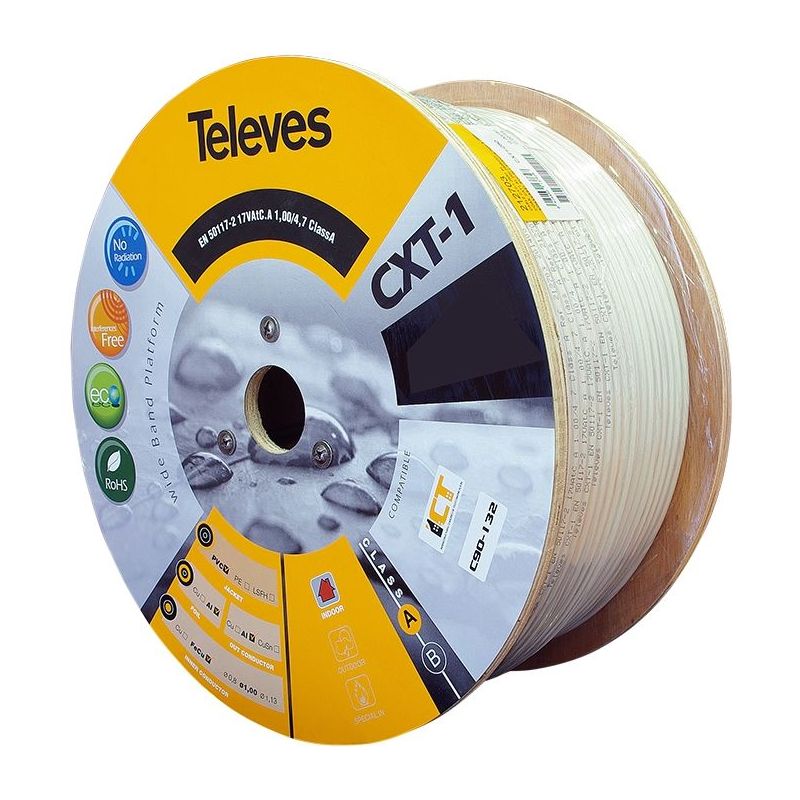

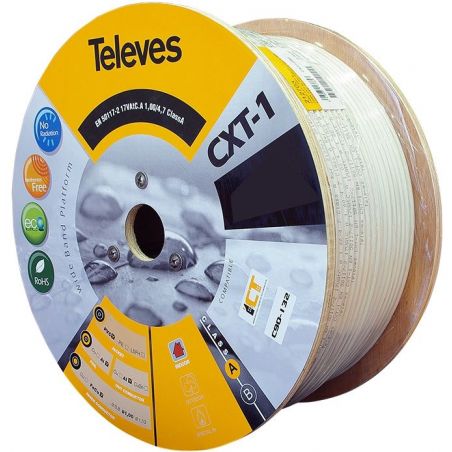

Wood coil 500m coaxial cable CXT-1 Eca/A 17VAtC.A White Televes

Eca Euroclase and Class A shield. 500m wood coil. White color. Coaxial cable with live made of copper steel and aluminum mesh (CCS / Al), with excellent braiding coverage (77%). A 17VAtC.A cable, double shielding and PVC cover. Televes 212704

€0.48
Tax included
Reference televes-212704
Brand Televes
Quantity
Available in 24/48h

Free shipping
Wood coil 250m coaxial cable CXT-1 17VAtC.A White Televes

Wood coil 500m coaxial cable CXT-1 Eca/A 17VAtC.A White Televes

€0.48

Coaxial cable with live made of copper steel and aluminum mesh (CCS / Al), with excellent braiding coverage (77%). A 17VAtC.A cable, double shielding and PVC cover.

Stands out for

  • Internal conductor made of copper-plated steel and aluminum mesh
  • Class A shielding
  • Euroclass Eca

Features

  • Outer PVC cover in White
  • Characteristic impedance of 75 ohm
  • 500m wood coil.

Double-shielded Class A coaxial cable

With 2 shielding layers, these cables provide an outstanding shielding thanks to a high-coverage braid.

They belong in EN 50117 standard Class A, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 5 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 85 dB
  • For 1000 MHz - 2000 MHz => SA > 75 dB
  • For 2000 MHz - 3000 MHz => SA > 65 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

Model   212704
Type CXT-1
Standard EN 50117-2-4
EuroClase Eca
Class A
Central conductor Ø mm 1
Material CCS
Res. Ohm/Km <120
Dielectric Ø mm 4.7
Material PEE
Inner sheet Aluminum + Polyester
Mesh Material Al
Dimensions (Ncx Nsx Ø) 16 x 8 x 0.12
Res. Ohm/Km <30
% coverage 77
Anti-immigrant poster No
Petro-Gel No
Outside coverage Ø mm 6.7
Material PVC
Minimum bend radius mm 33
Shield at 1GHz dB >85
Capacity pF/m 54
Impedance Ohm 75
Transfer Impedance (5-30MHz) mOhm/m ≤5
Propagation speed min. % 82
Attenuations (dB / m)
Frequency (MHz)
5 0.03
47 0.05
90 0.06
200 0.09
500 0.15
800 0.17
1000 0.23
1350 0.27
1750 0.32
2050 0.35
2300 0.37
