SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 6074 AND id_lang = 1 Fiber optic PAU 4 outputs SC/APC 2 fibers of 70m Televes
Fiber optic PAU 4 outputs SC/APC 2 fibers of 15m Televes
search
  • Fiber optic PAU 4 outputs SC/APC 2 fibers of 15m Televes

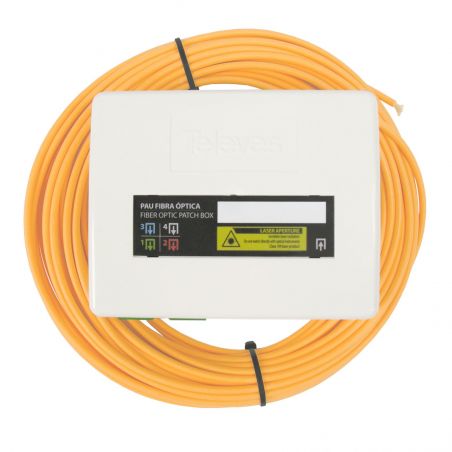

Fiber optic PAU 4 outputs SC/APC 2 fibers of 70m Televes

Device enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231524

€91.31
Tax included
Reference televes-231524
Brand Televes
Quantity
Available in 24/48h

Free shipping
Fiber optic PAU 4 outputs SC/APC 2 fibers of 15m Televes

Fiber optic PAU 4 outputs SC/APC 2 fibers of 70m Televes

€91.31

Device enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. It incorporates the pre-connectorization on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR (Network Termination Register) and from there to pass the optical fiber without difficulty, through the different channels to the point of connection. The installer must only perform, at the point of connection, the fusion or connectorization of 2 FO connectors. By its design, it also allows its installation in other types of locations (workshops, classrooms, work tables, connection cabinets ...) using it as a connection point.

Stands out for

  • Made of durable ABS plastic
  • With capacity of up to 4 SC / APC output connectors
  • Multi-anchoring: DIN rail, wall or socket
  • Unique direction of rotation of the fibers inside (which facilitates installation)
  • With identification tag
  • Includes 2 adapters "SC / APC" female to "SC / APC" female (with self-locking cap)

Features

  • 2 fibers of 70m
  • White color (RAL 9003)
  • 6 entries pre-cut on their sides, for FO access
  • Rear input for SC connector
  • Rear input for FO and SC connector
  • Entrance pre-cut by the lower part, for access to the possible dealer (SC / APC)
  • They include: 2 thermo-retractable covers, 2 flanges, screws for installation

Specifications

General
Inputs 6 pre-cut tickets on the sides for the arrival of TF
1 rear entry for SC connector
1 rear entrance for FO
1 pre-cut entry at the bottom, to access the distributor (SC/APC)
Outputs Up to 4 outputs for SC/APC adapters
Material ABS (white RAL 9003)
Type of fixation Wall / DIN rail
