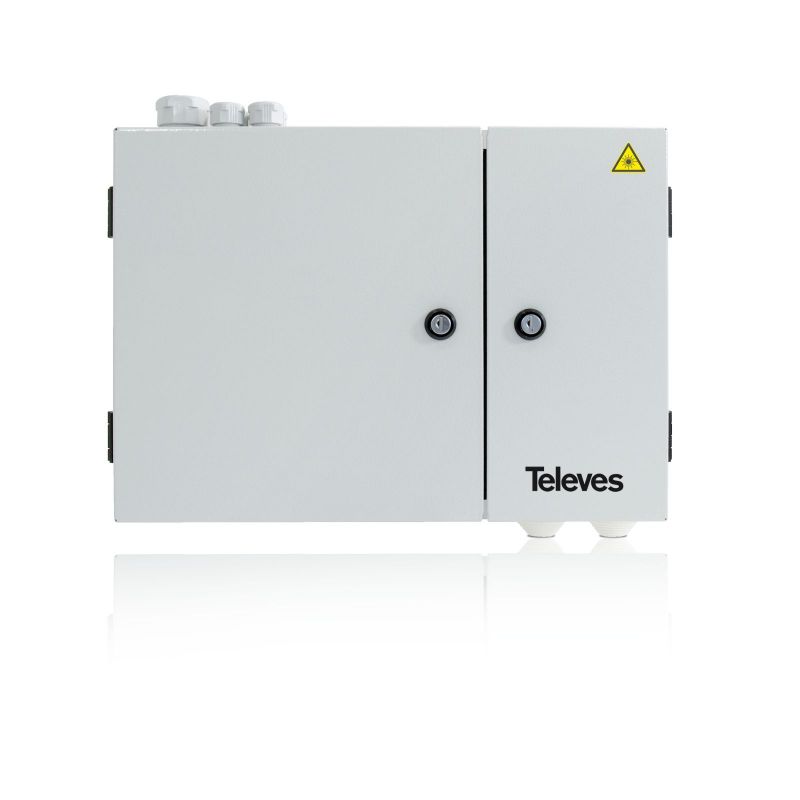

Designed to work as a distribution point for optical fibre cables. Commonly used in FTTH projects, where it simplifies the interconnection between the user's network and the operator's network (typical RITI installation).

Highlights

• Made of lacquered steel
• Independent compartments with door and lock, separated by a panel of up to 48 SC/APC adapters
• Equipped with 2 inputs at the bottom for operators and 5 outputs at the top for the building backbone
• Manufactured in Europe

 Features

• Grey colour (RAL 7035)
• A folding tray holder allows working with the fibre trays in the horizontal position
• 4 independent folding FO trays (book format), with enough capacity to stow up to 12 splices each
• Equipped with 2 metal anchors to hold the main core elements, as provided by the FO cables
• Includes a PG29 stuffing gland, prepared for an FO cable with 17mm maximum diameter (48 fibres)
• Includes 4 PG16 stuffing glands, prepared for an FO cables with 8mm maximum diameter (24/12 and 2 fibres)
• Equipped with 2 access rubbers, 50mm-diameter each
