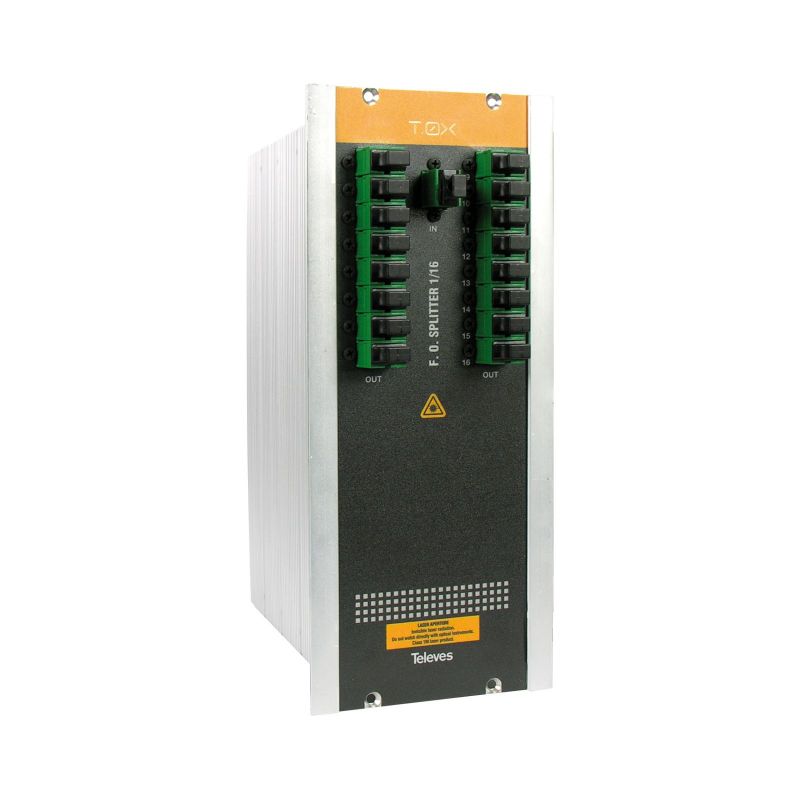

Optical splitter T.0X SC/APC 16 outputs 1260-1650nm 14dB Televes

16-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. The T.0X format frame allows rack installation for optical fibre headends. Televes 234501

€508.49
Tax included
Reference televes-234501
Brand Televes
Quantity
Available in 24/48h

Free shipping
Optical splitter T.0X SC/APC 16 outputs 1260-1650nm 14dB Televes

Optical splitter T.0X SC/APC 16 outputs 1260-1650nm 14dB Televes

€508.49

16-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fibre headends.

Highlights

  • High reliability
  • High uniformity among outputs
  • T.0X-series format

Features

  • Low insertion losses
  • SC/APC connectors

Specifications

Reference  234501


INPUT / OUTPUT


 		  Wavelength nm 1310 - 1550
 No. of outputs    16
 Optical connector   SC/APC
 Insertion losses 1310/1550 nm  dB  ≤ 13.7
 Return losses  dB  ≥55
 Directivity  dB  ≥55
 Uniformity  dB  ≤ 1.2
GENERAL    Ingress protection level  IP  20
 Dimensions mm 73 x 216 x 175
