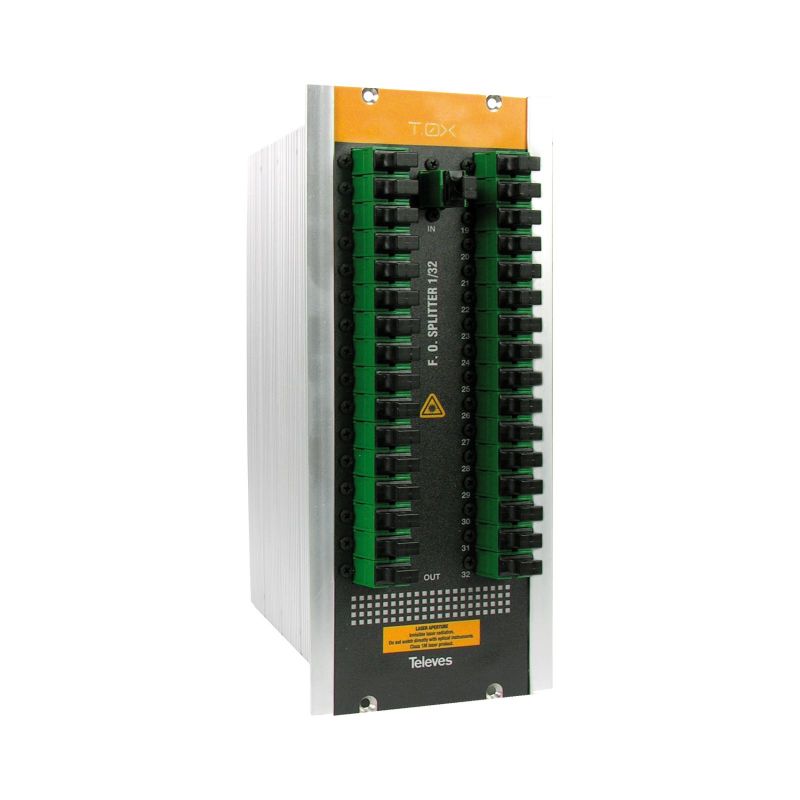

Optical splitter T.0X SC/APC 32 outputs 1260-1650nm 17dB Televes

32-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. The T.0X format frame allows rack installation for optical fibre headends. Televes 234601

€762.74

Tax included

Reference televes-234601

Brand Televes

Optical splitter T.0X SC/APC 32 outputs 1260-1650nm 17dB Televes

€762.74

Description
Product Details

32-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fibre headends.

Highlights

High reliability
High uniformity among outputs
T.0X-series format

Features

Low insertion losses
SC/APC connectors

Specifications

Reference			234601
INPUT / OUTPUT	Wavelength	nm	1310 - 1550
	No. of outputs		32
	Optical connector		SC/APC
	Insertion losses 1310/1550 nm	dB	≤ 17.5
	Return losses	dB	≥55
	Directivity	dB	≥55
	Uniformity	dB	≤ 2
GENERAL	Ingress protection level	IP	20
GENERAL	Dimensions	mm	73 x 216 x 175
