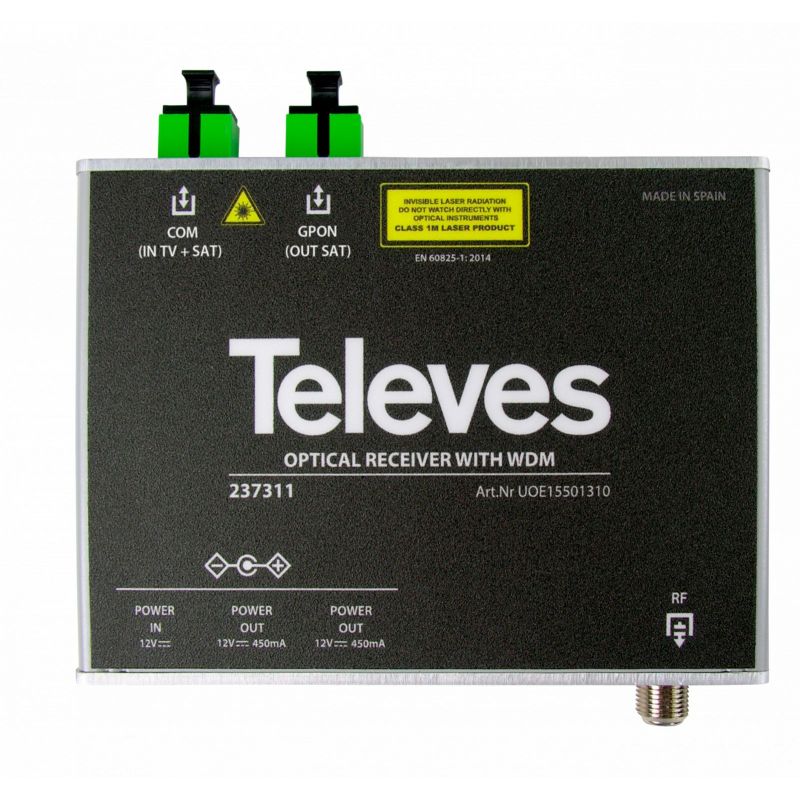

Receiver/Optical demultiplexer 1550nm SC/APC 1310/1490nm Televes
search
  • Receiver/Optical demultiplexer 1550nm SC/APC 1310/1490nm Televes

Receiver/Optical demultiplexer 1550nm SC/APC 1310/1490nm Televes

FTTH optical receiver. All the programs of a satellite and all the DTT in a single fiber. It is part of a FULL SAT + TDT system, to be used with the televes-237301 FTTH transmitter. Televes 237311

€190.68
Tax included
Reference televes-237311
Brand Televes
Quantity
Available in 24/48h

Free shipping
Receiver/Optical demultiplexer 1550nm SC/APC 1310/1490nm Televes

Receiver/Optical demultiplexer 1550nm SC/APC 1310/1490nm Televes

€190.68

You might also like

FTTH optical receiver
The complete satellite and DTT lineup in a single optical fibre
The FTTH receiver captures a satellite and a terrestrial TV optical signal on a single fibre (1310 nm/1550 nm) and demultiplexes it (WDM). The satellite signal is available on an optical output (1310 nm), while the terrestrial signal (1550 nm) is converted into an RF output.
Part of FULL SAT + DTT system to be used together with the FTTH transmitter televes-237301.

Highlights

  • Flexible in terms of power supply: equipped with two power supply outputs to remotely feed a SAT converter or a multiswitch
  • High sensitivity in 1550 nm>
  • High output voltage (RF amplification)

Features

  • Compatible with legacy and dCSS multiswitches
  • Can be wall-mounted using screws
  • Very pleasant and compact format
  • SC/APC optical connectors, and F-type connectors for RF

Specifications

Reference   237311
RF Output
 Bandwidth MHz 47 ... 1006
 Flatness  dB ± 1.5
 Self-regulating output level dBµV 78
 CNR/CSO/CTB  dBµV >49/>60/>60
 Slope dB 5
Optical Input / Output
 Optical input level for OLC  dBm -8 ... +1
 Wavelength nm COM: 1310 & 1490 & 1550 (1)
GPON: 1310 & 1490 (2)
General
Supply voltage V= 12
 Device internal consumption mA 250
 DC transit through the output mA 450
 Dimensions (xyz) mm 114 x 79 x 30
 Weight  g 250
 IP protection index IP 30

(1) 1310 and 1490nm bidirectional, 1550nm input only.
(2) 1310 and 1490nm bidirectional.
