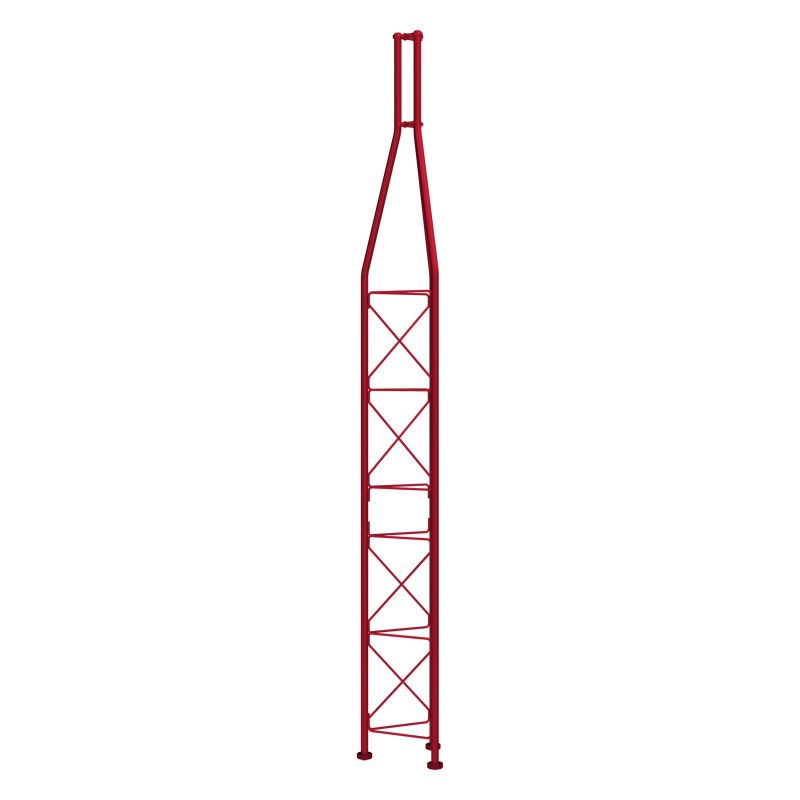

Top section Zinc+Red paint 3m turret serie 360 Televes
3m upper section for the erection of a 360 series tower. Red color. Televes 308501
€648.61
Tax included
Reference
televes-308501
Brand
Televes
Top section Zinc+Red paint 3m turret serie 360 Televes
€648.61
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
3m upper section for the erection of a 360 series tower.
Highlights
- Anchoring system with union nuts
- Fully automated soldering
- 360 tower maximum height: 57m (as per calculation conditions)
Features
- Zinc coating + Red colour paint: oven-lacquering with polyester electrostatic powder
Specifications
| Description | Upper section tower 360. Red color |
| Material |
(1) Steel ST 37-2 Ø 30 ext. x 2 mm esp. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2 (2) Steel S 275 JR Ø 9 mm esp. Re min. 275 N / mm2 - Rn min. 410/560 N / mm2 (3) Steel F626 (S 235) sheet 10 mm esp. Re min. 275 N / mm2 - Rn. 410/560 N / mm2 |
| Finish | Primed + Oven Lacquer with Polyester Electrostatic Powder 60-80 μm (Red RAL 3020) |
| Weight | 23 Kg |
| Surface facing the wind | 0.333 m2 x 1.2 coef. = 0.40 m2 |
