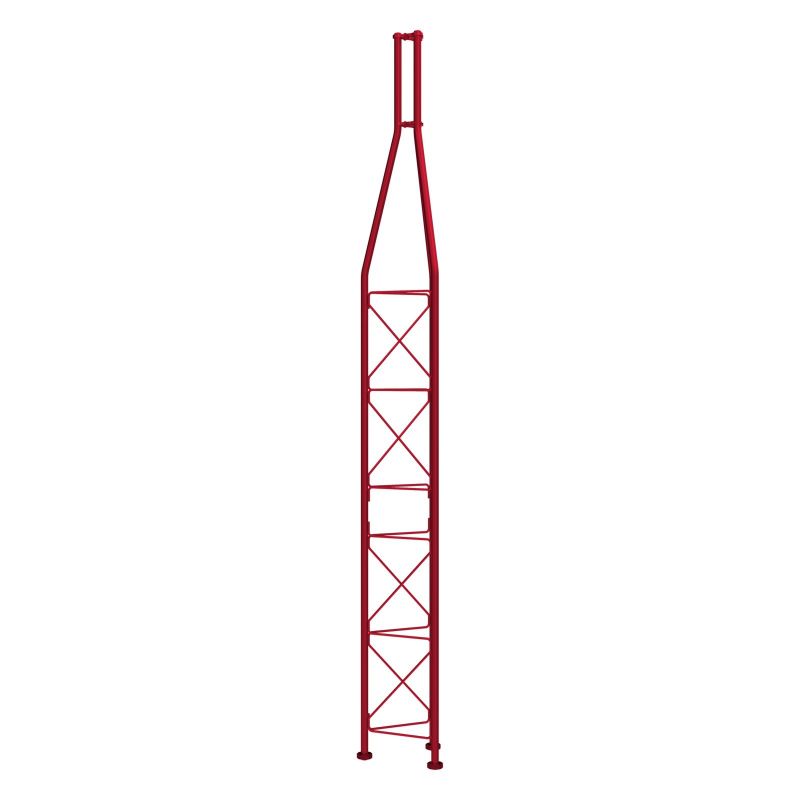

Upper section G.C+Painting Red 3m turret series 360 Televes
search
  • Upper section G.C+Painting Red 3m turret series 360 Televes

Upper section G.C+Painting Red 3m turret series 360 Televes

3m upper section for the erection of a 360 series tower. The section is painted red (RAL 3020). Televes 308504

€898.85
Tax included
Reference televes-308504
Brand Televes
Quantity
Available in 24/48h

Free shipping
Upper section G.C+Painting Red 3m turret series 360 Televes

Upper section G.C+Painting Red 3m turret series 360 Televes

€898.85

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m upper section for the erection of a 360 series tower.
The section is painted red (RAL 3020).

Highlights

  • Anchoring system with union nuts
  • Fully automated soldering
  • 360 tower maximum height: 57m (as per calculation conditions)

Features

  • The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
  • Colour paint, oven-lacquering with polyester electrostatic powder

Specifications

Reference

 308504

Description

Upper section tower 360. Red color

Material

(1) Steel ST 37-2 Ø 30 ext. x 2 mm esp. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2
(2) Steel S 275 JR Ø 9 mm esp. Re min. 275 N / mm2 - Rn min. 410/560 N / mm2
(3) Steel F626 (S 235) sheet 10 mm esp. Re min. 275 N / mm2 - Rn. 410/560 N / mm2

Finish

Primed + Oven Lacquer with Polyester Electrostatic Powder 60-80 μm (Red RAL 3020)

Weight

23 Kg

Surface facing the wind

0.333 m2 x 1.2 coef. = 0.40 m2
