Bottom section tilting Zinc + Painting Red 3m turret series 360 Televes

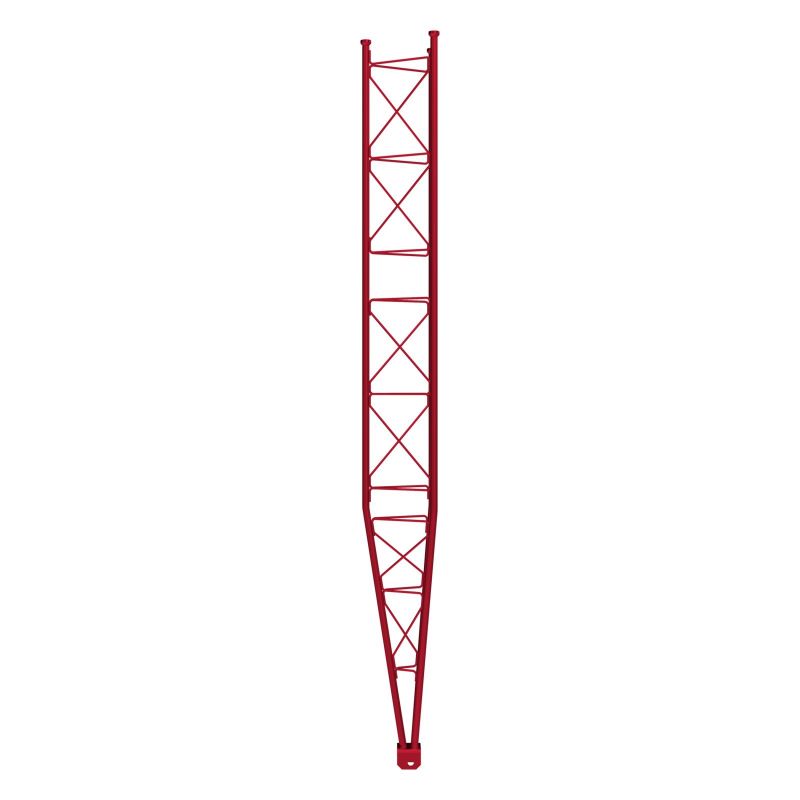

3m lower section pivoting for the erection of a 360 series tower. Guy wires are required for pivoting sections. Red color. Televes 308601

€648.61
Tax included
Reference televes-308601
Brand Televes
Quantity
Available in 24/48h

Free shipping
Bottom section tilting Zinc + Painting Red 3m turret series 360 Televes

Bottom section tilting Zinc + Painting Red 3m turret series 360 Televes

€648.61

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m lower section pivoting for the erection of a 360 series tower.
Guy wires are required for pivoting sections.

Highlights

  • Anchoring system with union nuts
  • Fully automated soldering
  • 360 tower maximum height: 57m (as per calculation conditions)

Features

  • Zinc coating + Red colour paint: oven-lacquering with polyester electrostatic powder

Specifications

Description Upper section tower 360. Red color
Material

(1) Steel ST 37-2 Ø 30 ext. x 2 mm esp. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2

(2) Steel S 275 JR Ø 9 mm esp. Re min. 275 N / mm2 - Rn min. 410/560 N / mm2

(3) Steel F626 (S 235) sheet 10 mm esp. Re min. 275 N / mm2 - Rn. 410/560 N / mm2
Finish Primed + Oven Lacquer with Polyester Electrostatic Powder 60-80 μm (Red RAL 3020)
Weight 25 Kg
Surface facing the wind 0.355 m2 x 1.2 coef. = 0.426 m2
