Bottom section tilting Zinc + Painting White 3m turret series 360 Televes

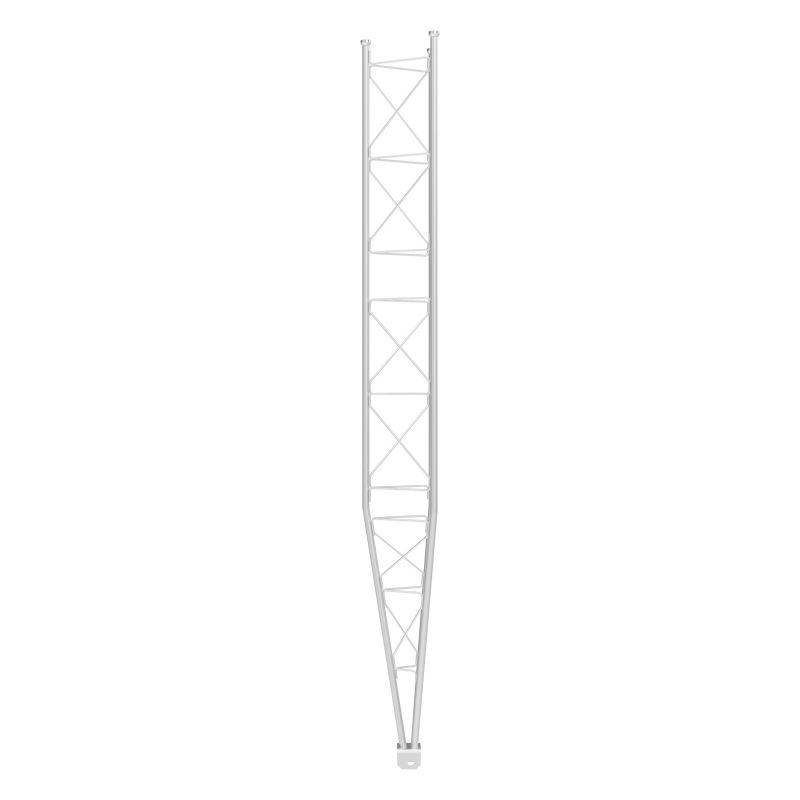

3m lower section pivoting for the erection of a 360 series tower. Guy wires are required for pivoting sections. White color. Televes 308602

€648.61
Tax included
Reference televes-308602
Brand Televes
Quantity
Available in 24/48h

Free shipping
Bottom section tilting Zinc + Painting White 3m turret series 360 Televes

Bottom section tilting Zinc + Painting White 3m turret series 360 Televes

€648.61

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m lower section pivoting for the erection of a 360 series tower.
Guy wires are required for pivoting sections.

Highlights

  • Anchoring system with union nuts
  • Fully automated soldering
  • 360 tower maximum height: 57m (as per calculation conditions)

Features

  • Zinc coating + White colour paint: oven-lacquering with polyester electrostatic powder

Specifications

Description Upper section tower 360. White color
Material

(1) Steel ST 37-2 Ø 30 ext. x 2 mm esp. Re min. 235 N / mm2 - Rn min. 360/510 N / mm2

(2) Steel S 275 JR Ø 9 mm esp. Re min. 275 N / mm2 - Rn min. 410/560 N / mm2

(3) Steel F626 (S 235) sheet 10 mm esp. Re min. 275 N / mm2 - Rn. 410/560 N / mm2
Finish Primed + Oven Lacquer with Polyester Electrostatic Powder 60-80 μm (White RAL 9002)
Weight 25 Kg
Surface facing the wind 0.355 m2 x 1.2 coef. = 0.426 m2
